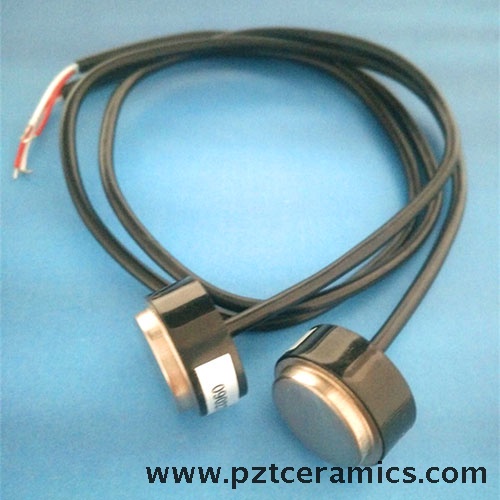

Ultrasonic heat water flow sensors

Ultrasonic flow meter sensor consists of piezoelectric ceramic plate, matching materials and shielding layer, shell, whose character is on the top of the piezoelectric ceramic piece is equipped with signal processing board, the signal processing board of two electrodes respectively welding on piezoelectric ceramic piece, the side below, electrode and shielding wire connection, the signal processing board in the middle of the match on welding electronic components, on the shell of the cavity filling sealing rubber. The ultrasonic transducer, the heat meter can not only improve the consistency of the intensity of the ultrasonic transducer signal and the signal, and can make the piezoelectric ceramic chip generation and transmission signal is consistent with the frequency of ultrasonic vibration, but also has high strength, corrosion resistance, high voltage, high temperature resistant, anti-jamming, high conversion efficiency, good consistency.

Models and Technical Data:

Material for flap: Plastic material

                            Stainless metal

Electrical specification:

Note:All materials comply with the requirements of environmental protection, while Piezoelectric ceramic exempt from lead restriction.

Package:

Note：

1. Storage Condition:-25°C～11°C.

2. Please take Anti interference into consideration when designing driving circuit.

3. Driving voltage is suggested to be lower than 5Vpp.

4. Operating temperature:0°C～+95°C.

5. Maximum pressure endurance is 3.0MPa.

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research room:

Equipment picture:precision automatic tablet press machine

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
