China Ultrasonic Sound Transducer

The China ultrasonic sound transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode.

When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibration ultrasonic system is divided into three parts, ultrasonic generator, ultrasonic transducer, and ultrasonic die, with the three parts is a complete ultrasound system.

Main functions of China ultrasonic sound transducer

Low resonance impedance .high mechanical quality factor.

High electro-acoustic conversion efficiency and large amplitude.

lower heating, large temperature range; small performance drift, stable working.

Good material and a long lifetime.

Instruction of use

The frequencies of the ultrasonic transducer, booster, and horn must be matched with each other.

The frequencies of the horn and booster should be lower than the frequency of the transducer.

The connection surface must ensure vertical and flatness, and the connection torque must be appropriate.

The Welding of the electrode plate should be reliable and covered with damping glue.

The operating temperature of the ultrasonic transducer should be lower than 60 °C, and the input power should be lower than the rated power.

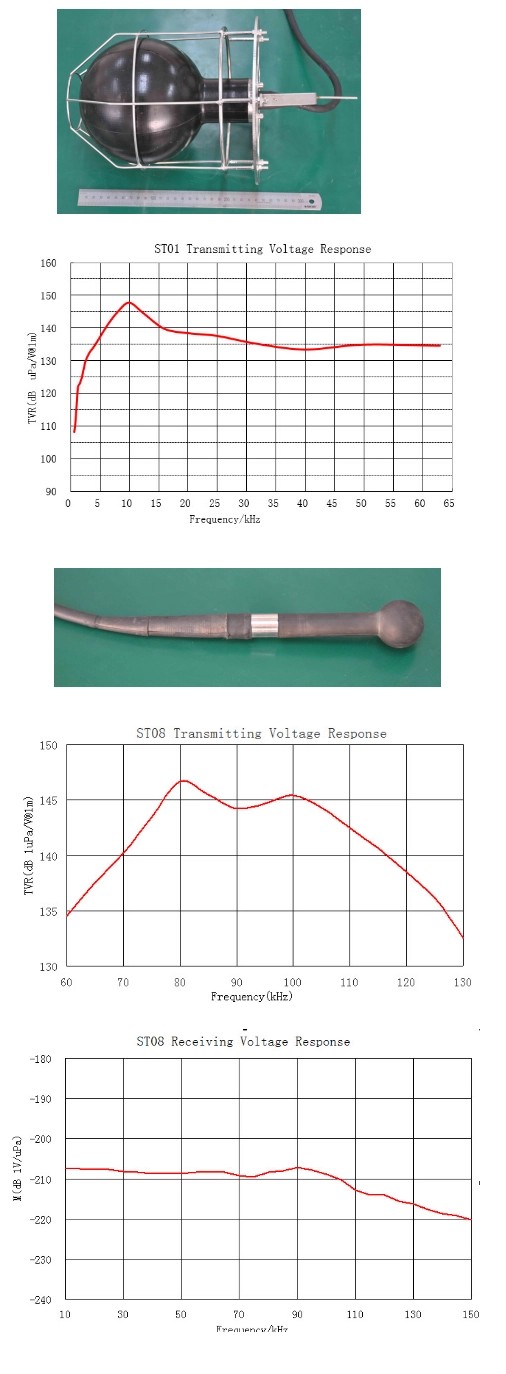

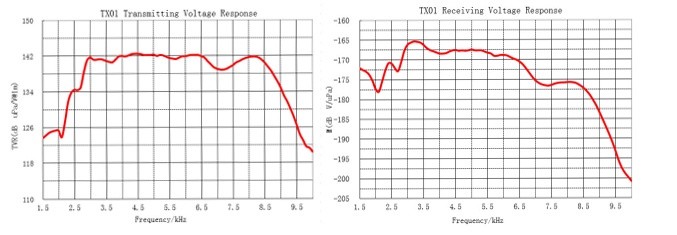

1. High Power Tonpilz Broadband Transducer

Frequency: 1.5 to 150kHz

Transmit Voltage Response: up to 145 dB  µPa/V@1m

Receiving Sensitivity: up to -170 dB      V/µPa

Bandwidth: Low Q (< 2 underwater) and Broadband

Depth: up to 5000 m

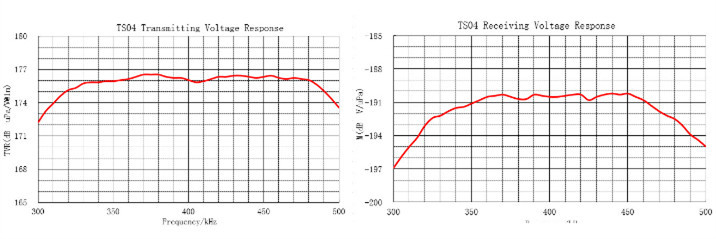

2. High Power Sandwich Broadband Transducer

Frequency: 50 to 1500kHz

Transmit Voltage Response: up to 165 dB  µPa/V@1m

Receiving Sensitivity: up to -190 dB      V/µPa

Bandwidth: Low Q (< 2 underwater) and Broadband

Depth: up to 5000 m

3.Omnidirectional and Hemispherical Transducer

Resonant Frequency: 20 to 250kHz

Transmit Voltage Response: up to 145 dB  µPa/V@1m

Receiving Sensitivity: up to -180 dB      V/µPa

Depth: up to 300 m

Size: SØ170- SØ8 mm

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research and development room:

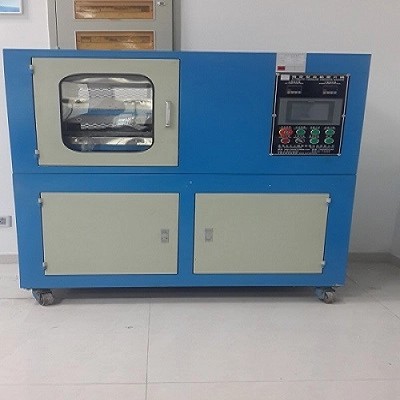

Equipment picture:precision automatic tablet press machine

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
