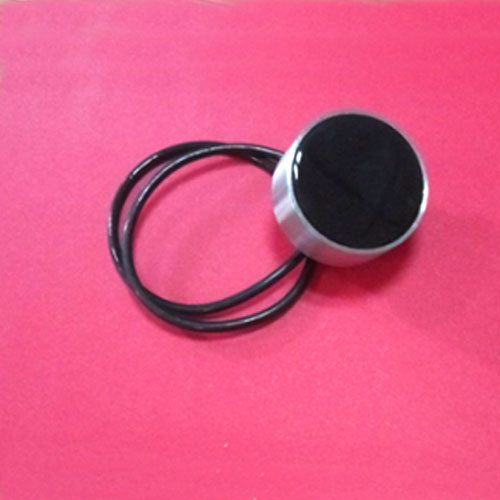

Piezoelectric transducer by piezoelectric composite material

Composite materials have been widely used in the water acoustic, electro-acoustic, ultrasound, medical and other fields . If it is made into a hydroacoustic transducer, not only has a high hydrostatic response rate, but also impact resistance, is not easily damaged and can be used with different depths.

Feature: High electric coupling constant

Low agent wear

Small mechanical quality constant

Low acoustic impedance

Application: Fish finder sonar

Collision avoidance sonar

3D image sonar

Side scan sonar

Anti-frogman sonar

The piezoelectric transducer can be made by two types materials:

1.piezoelectric composite material

2.piezoelectric ceramic material

The difference between composite material and piezoelectric material is mainly bandwidth and opening angle.The same specification of the product, composite material bandwidth is less than the piezoelectric material, but the opening angle is bigger than piezoelectric material.

The size and shape is same, the parameter is different.

Size:

diameter:100mm

Thickness:50mm

Parameter:

1.Composite material transducer

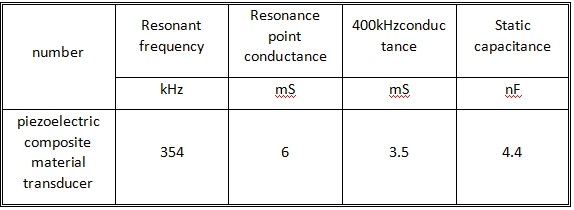

Water Conductivity:

2.Piezoelectric material transducer

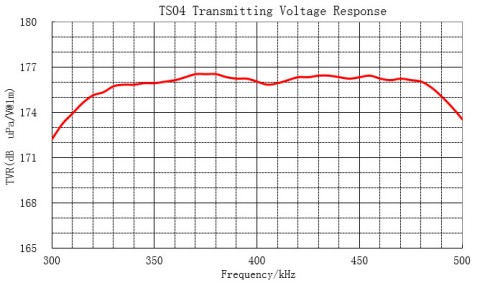

Center frequency 400kHz,transmitting voltage response 176dB，bandwidth190kHz

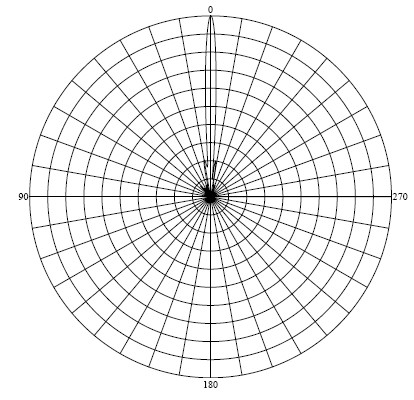

Directivity:

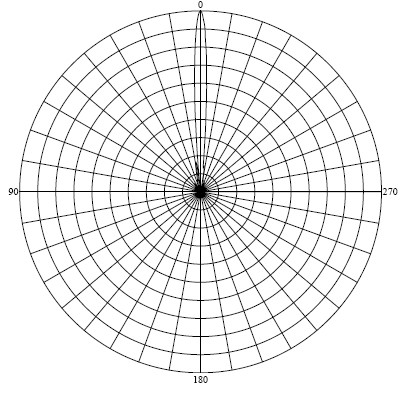

Horizontal directivity 2θ-3dB=5°                       Vertical directivity 2θ-3dB=5.5°

Water Conductivity:

*All products can be customized according to customer requirements.
