Material:

Compound

Customized:

Yes

MOQ:

Negotiable

Payment:

T/T, L/C

Order Delivery Time:

Within 30 working days

Transportation:

By air via express company, like DHL, TNT, UPS, EMS

Name

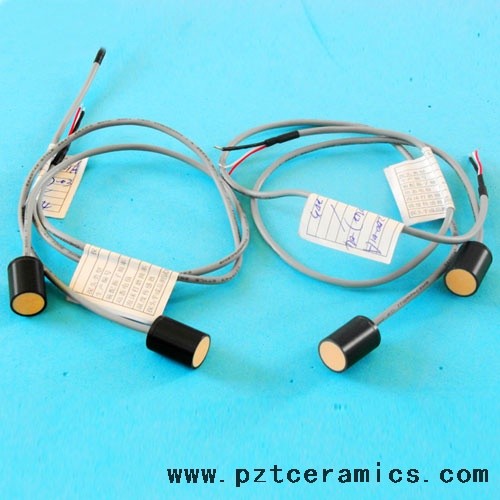

200KHz ultrasonic sensor

Type

DYA-200-01A

Frequency

200KHz±5%

Recommended range

0.10～1.5m

Minimum impedance

1005Ω±20%

Capacitance

730pF±20%@1KHz

Sensitivity

Load driving voltage:850Vpp,

distance 0.3m,

Echo amplitude 40mV

Operating voltage

Peak voltage＜1000VPP

Operating temperature

-40～+80℃

Pressure

≤3KG or 0.3MPa

Angle

(beam width) half-power angle@-3dB:8°±2

Sharpness angle:17°±4

Shell material

POM

Application

Ultrasonic level meter, monitoring, anti-collision, security

Installation dimension

Dimension:14*20

International Protection

IP68

Weight

9 g±5%(line lengthy:25cm)

Wire instructions

Integrated interface:red:transducer+ ,white：transducer- , black: shielded wire,(default without temperature sensor)

Admittance Curve Graph

Product Structure Drawing
