◉ PRODUCT SPECIFICATION

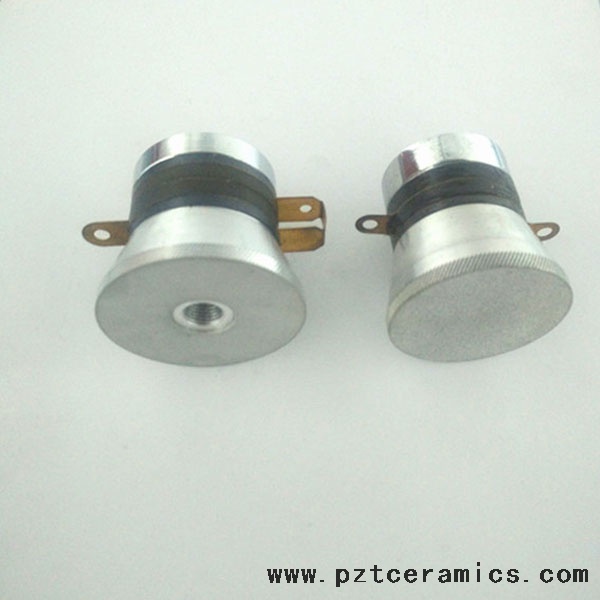

Ultrasonic cleaning transducer

Ultrasonic cleaning works by creating cavitation in a cleaning liquid by means of high-power ultrasonic waves.
End devicescleaning is a topic that covers a very wide range of designs from small eyeglass cleaning baths for opticians all the way to 20m-long industrial cleaning plants with automatic converyor system.ultrasonic cleaning works by creating cavitation in a cleaning liquid by means of high-power ultrasonic waves.

Brand name:

JUDE

Model No:

JD5938D-28H

Material:

PZT

MOQ:

Negotiable

Payment:

T/T, L/C

Order Delivery Time:

Within 30 working days

Transportation:

By air via express company, like DHL, TNT, UPS, EMS


Feature: High quality

High sensitivity

cleaning-transducer01-(13)

640


Specification:

Type

Radial Frequency

fr(KHz)

Resonance impedance

Rt(%)

capacity

C(pf)

Power output

w

JD4535D-28H

28

15

4000

50

JD4535D-40H

40

15

4000

50

JD5938D-28H

28

12

5000

60

JD3938D-40H

40

8

5000

50

JD6745D-25H

25

15

6500

100

JD6345D-28H

28

15

6500

100

JD6550D-28H

28

15

7000

120

Size:

JD5938L-28H

JD

Our company code


59

Diameter of radiating surface


38

Diameter of PZT


L

Two pieces PZT crystal


28

Resonance frequency


H

trumpet-shape radiating surface

*All products can be customized according to customer requirements.

We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.


Certification:

Jude's Certifications

Factory:

WEIFANGJUDE

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
