◉ PRODUCT SPECIFICATION

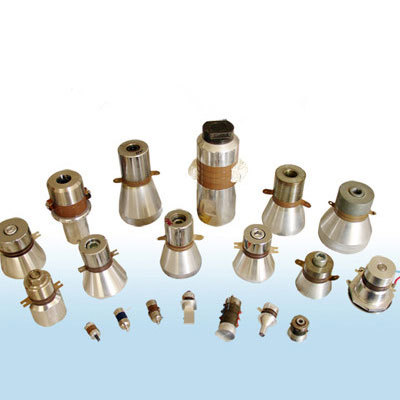

Ultrasonic welding and hole drilling transducer

Brand name:                         JUDE

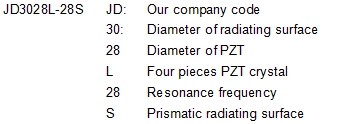

Model No:                               JD3028L-28S
Material:                                 PZT
MOQ:                                      Negotiable
Payment:                               T/T, L/C
Order Delivery Time:           Within 30 working days
Transportation:                     By air via express company, like DHL, TNT, UPS, EMS



Ultrasonic welding and hole drilling transducer JUDE ManufactureUltrasonic welding and hole drilling transducer JUDE Manufacture



Feature:           High quality
                         High sensitivity

Model and Technical Data:

TypeRadial Frequency
fr(KHZ)
Resonance impedance
Rt(%)
capacity
C(pf)
Power output
w
JD3028L-28S28≤206000200
JD3535L-28S28≤187000400
JD4040L-28S20≤18100001000
JD4545L-28S28≤16120001000
JD5050L-28S20≤16150001200
JD6060L-28S15≤16120001500

*All products can be customized according to customer requirements.
