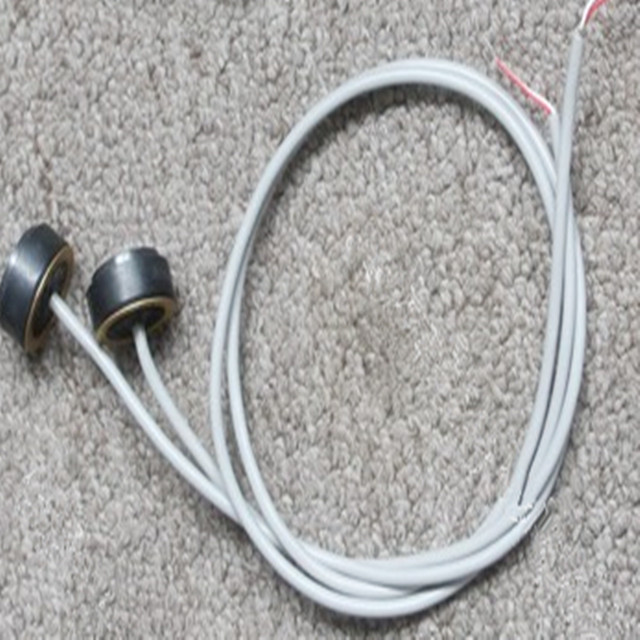

Ultrasonic flowmeter sensor JUDE Manufacturer

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

JUDE Ultrasonic flowmeter Sensor

Specification and technical datas as following:

Type	Frequency khz	Sensitivity dB	After-shock Bus	Sending and receiving ratio	Work temperature ℃	Capacity pf	Impedance Ω
Type	Frequency khz	Sensitivity dB	After-shock Bus	Sending and receiving ratio	Work temperature ℃	Capacity pf	Impedance Ω
JDRC-14001	960khz+/-5khz	>35dB	<10Bus	>0.6mv	10℃-90℃	1200pf+/-10%	<100Ω
JDRC-14002	960khz+/-5khz	>35dB	<10Bus	>0.6mv	10℃-90℃	1200pf+/-10%	<100Ω
JDRC-14003	960khz+/-5khz	>35dB	<10Bus	>0.6mv	10℃-90℃	1200pf+/-10%	<100Ω

1.Piezoelectric ceramic disc material:PZT-5
2. Size:OD14xT2.2mm

2. Size:OD14xT2.2mm
Sensor size:OD20.7mm,height or thickness 9.7mm,wire length 10mm.or according customer's require.We have two type material for flap.One is plastic material ,another is is stainless metal.So there with a little difference on OD and thickness/height size.

3.Supply capacity:100000pair/month

4.Delivery time:30days.

5.Packing :34x32x24mm/carton, about 5kgs/ctn,shipment:by air.

Application:
Ultrasonic flow meter
Heat water meter

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
