◉ PRODUCT SPECIFICATION

Ultrasonic cleaning transducer

Brand name:

JUDE

Model No:

JD5938D-28H

Material:

PZT

MOQ:

Negotiable

Payment:

T/T, L/C

Order Delivery Time:

Within 30 working days

Transportation:

By air via express company, like DHL, TNT, UPS, EMS

Ultrasonic cleaning machine including vehicles, ships, aircraft surface cleaning, only remove the relatively large dirt; precision industrial ultrasonic cleaning machine cleaning including a variety of products in the production process of cleaning, cleaning of various materials and equipment surface Washing, etc., to be able to remove small dirt particles for the characteristics of ultra-precision ultrasonic cleaning machine.Super precision ultrasonic  cleaning machines includes precision industrial production processes for mechanical parts, electronic components, and optical components, ultra-precision cleaning to remove tiny dirt particles for the purpose.

Feature:High quality

             High sensitivity

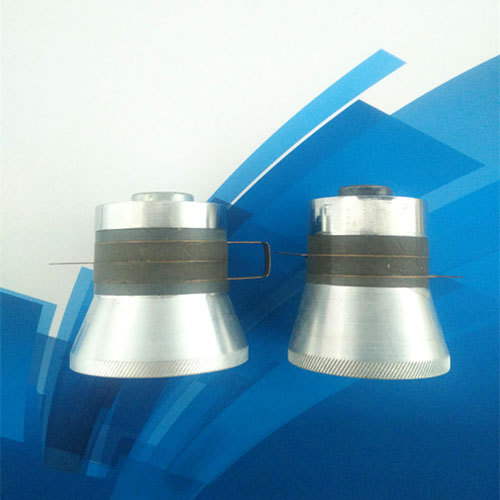

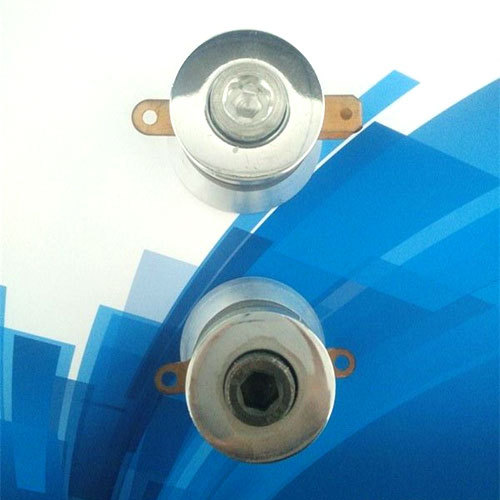

cleaning-transducer01-(2)cleaning-transducer01-(3)(1)

Models and Techanical Data:

Type

Radial Frequency

fr(KHz)

Resonance impedance

Rt(%)

capacity

C(pf)

Power output

w

JD4535D-28H

28

15

4000

50

JD4535D-40H

40

15

4000

50

JD5938D-28H

28

12

5000

60

JD3938D-40H

40

8

5000

50

JD6745D-25H

25

15

6500

100

JD6345D-28H

28

15

6500

100

JD6550D-28H

28

15

7000

120

Size:

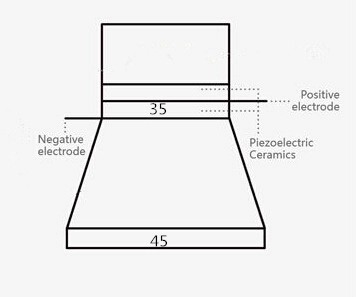

cleaning61

JD5938L-28H

JD

Our company code


59

Diameter of radiating surface


38

Diameter of PZT


L

Two pieces PZT crystal


28

Resonance frequency


H

trumpet-shape radiating surface

*All products can be customized according to customer requirements.

We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price.

The company achieves the ISO9001 Certification.

Weifang Jude Electronic Company is a manufacture of piezoelectric ceramic components. we have our own factory, experienced technical staff, and cooperate with the domestic first-class universities, establish a professional R&D room to develop new product and improve product quality.


Research room:

research-r (2)

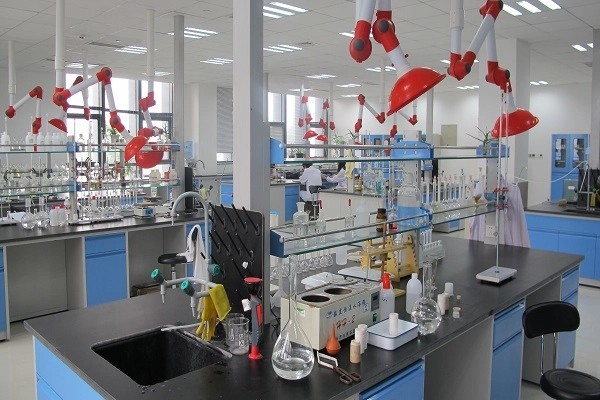

chemical-a


Certification:

Jude's Certifications

Factory:

WEIFANGJUDE

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
