JUDE Ultrasonic Sound Transducer

Transducer are devices how converting energy from one to another. As already mentioned, transducer, piezoelectric operate in two directions. Process pressure and vibrations into electrical signals, but also, conversely, the electrical signals in pressure, sound and vibration. Piezoelectric transducer convert mechanical force proportional change in resistance, but they are unable to reverse conversion.

Frequency:500 Hz to 15MHz

Transmit voltage response:up to 180dB µPa/V@1m

Bandwidth:Low Q(<2 underwater) and Broadband

Depth:up to 5000m

Beam Angle(-3dB):0.8° to Omnidirection

Product Description:

1.High Power Tonpilz Broadband Transducer

Frequency:1.5 to 150KHz

Transmit voltage response:up to 145dB µPa/V@1m

Bandwidth:Low Q(<2 underwater) and Broadband

Depth:up to 5000m

Receiving Sensitivity:up to -170dB V/µPa

2.High Power Sandwich Broadband Transducer

Frequency:50 to 1500KHz

Transmit voltage response:up to 165dB µPa/V@1m

Receiving Sensitivity:up to -190dB V/µPa

Bandwidth:Low Q(<2 underwater) and Broadband

Depth:up to 5000m

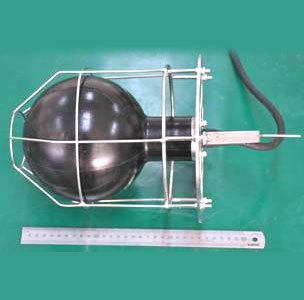

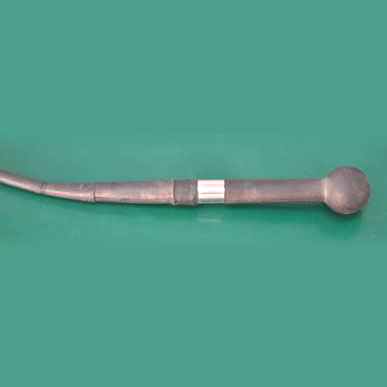

3.Omnidirectional and Hemispherical Transducer

Resonant Frequency:20 to 250KHz

Transmit voltage response:up to 145dB µPa/V@1m

Receiving Sensitivity:up to -180dB V/µPa

Bandwidth:Low Q(<2 underwater) and Broadband

Depth:up to 300m

Size:SØ170-SØ8mm

*All products can be customized according to customer requirements.

We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
