Ultrasonic Sound Transducer 500 Hz to 15 Mhz

Availability:



Inquire Add to Basket

Product Description

JUDE Ultrasonic Sound Transducer

Brand name:	JUDE
Material:	PZT
Customized:	Yes
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

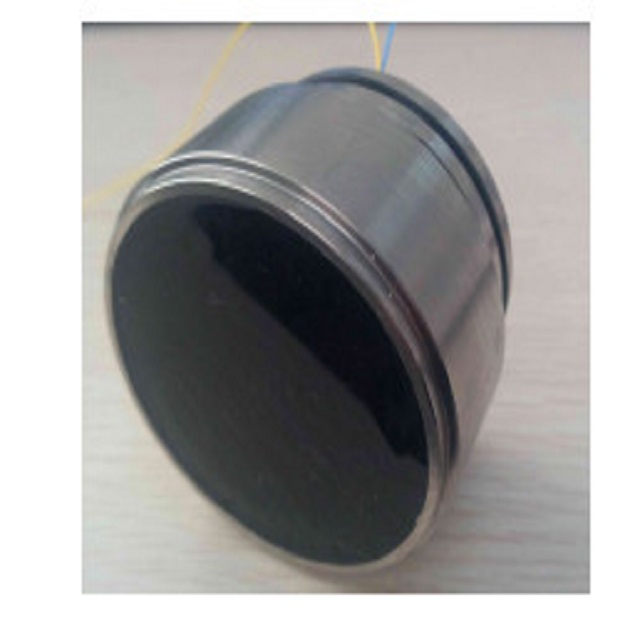

huannengqi 640
Frequency:500 Hz to 15MHz
Transmit voltage response:up to 180dB µPa/V@1m
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 5000m
Beam Angle(-3dB):0.8° to Omnidirection
Product Description:
1.High Power Tonpilz Broadband Transducer
Frequency:1.5 to 150KHz
Transmit voltage response:up to 145dB µPa/V@1m
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 5000m
Receiving Sensitivity:up to -170dB V/µPa
101
102
2.High Power Sandwich Broadband Transducer
Frequency:50 to 1500KHz
Transmit voltage response:up to 165dB µPa/V@1m
Receiving Sensitivity:up to -190dB V/µPa
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 5000m

3.Omnidirectional and Hemispherical Transducer
Resonant Frequency:20 to 250KHz
Transmit voltage response:up to 145dB µPa/V@1m
Receiving Sensitivity:up to -180dB V/µPa
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 300m
Size:SØ170-SØ8mm
111_副本
cert

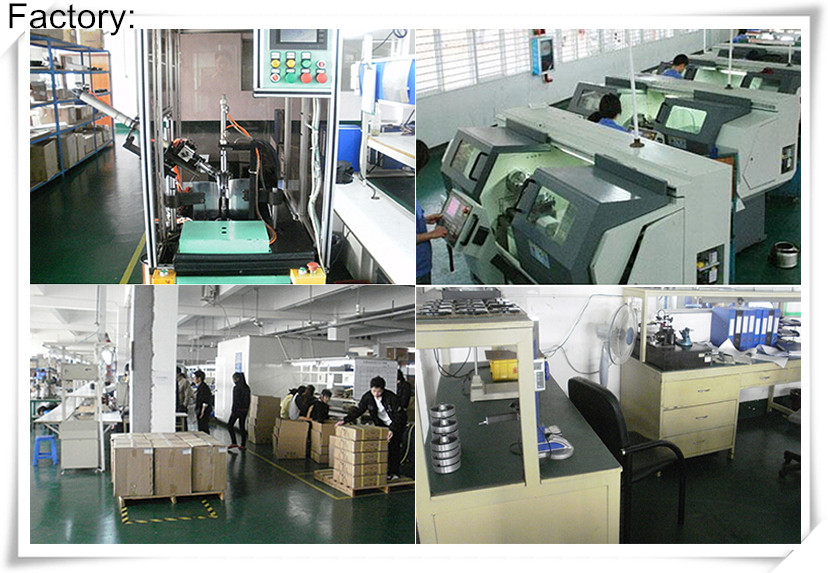

factory
