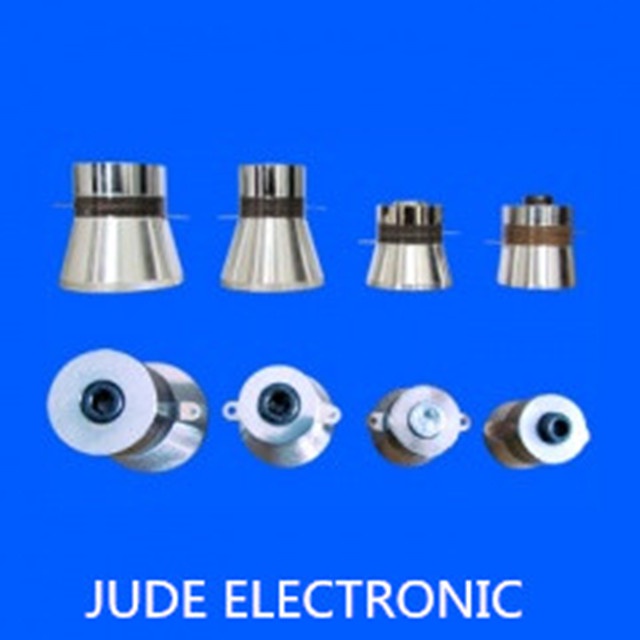

Ultrasonic Cleaning Transducer

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

Specification and technical datas as following:

Article No.	Resonance frequencyFr (khz)	Resonance impedance Rt≤(%)	Capacity C(pf)	Power output w
Article No.	Resonance frequencyFr (khz)	Resonance impedance Rt≤(%)	Capacity C(pf)	Power output w
JD4535D—28H	28	15	4000	50
JD4535D—40H	40	15	4000	50
JD5938D—28H	28	12	5000	60
JD3938D—40H	40	8	5000	50
JD6745D—25H	25	15	6500	100
JD6345D—28H	28	15	6500	100
JD6550D—28H	28	15	7000	120

Note:
1.JD4535D-28H, JD our company product code.45,diameter of radiating surface .35,diameter of PZT.D,two pieces PZT crystal 28,resonance frequency. H, trumpet-shape radiating surface.

2.if this list not you want,please kind let us know your resonance frequency,power output , we can manufacture new for you.

Application:

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
