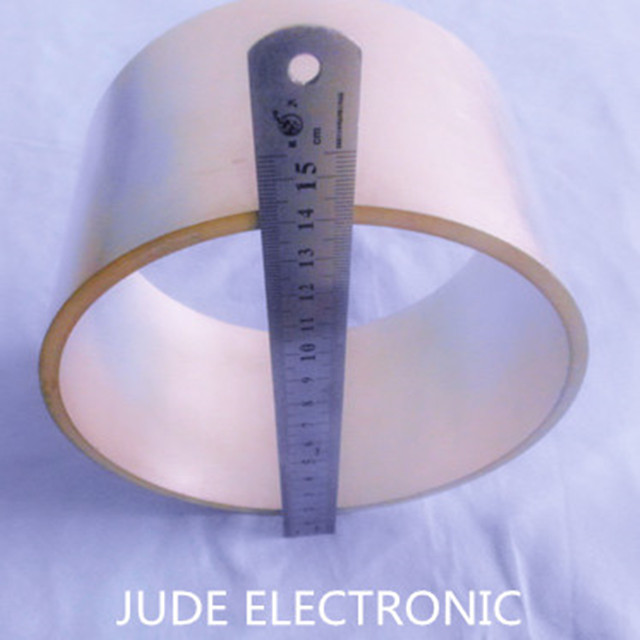

Piezoelectric ceramic tube (cylinder)

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

Specification and technical datas as following：

Article No.	Radial frequency(khz)	Coupling coefficient(k31%)	CapacityC(pf)	Piezoelectric changing constant d33	Agent wearTg(%)
Article No.	Radial frequency(khz)	Coupling coefficient(k31%)	CapacityC(pf)	Piezoelectric changing constant d33	Agent wearTg(%)
JDCC-P51-151110	70±5%	30	4680±10%	500	2
JDCC-P51-201615	50±5%	30	9700±10%	500	2
JDCC-P51-252115	39±5%	35	12400±10%	500	2
JDCC-P51-292520	34±5%	35	19400±10%	550	2
JDCC-P51-302518	33±5%	35	14250±10%	550	2
JDCC-P51-322820	36±5%	35	21600±10%	550	2
JDCC-P51-343020	28±5%	35	23000±10%	550	2
JDCC-P51-383225	26±5%	35	21000±10%	550	2
JDCC-P51-403237	25±5%	35	24000±10%	550	2
JDCC-P51-453925	22±5%	35	25200±10%	550	2
JDCC-P51-504425	19±5%	35	28200±10%	550	2
JDCC-P51-553930	19±5%	35	33800±10%	550	2
JDCC-P51-605430	16±5%	35	41000±10%	550	2
JDCC-P51-655930	15±5%	35	44600±10%	550	2
JDCC-P51-756716	13±5%	35	20400±10%	550	2
JDCC-P51-807420	12±5%	35	36900±10%	550	2
JDCC-P51-908420	10±5%	35	52180±10%	550	2

Note: material:PZT-51,

SIZE : JDCC-P51-151110 , 15mm is outside diameter,11mm is inner diameter,10mm is length.

Application:

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
