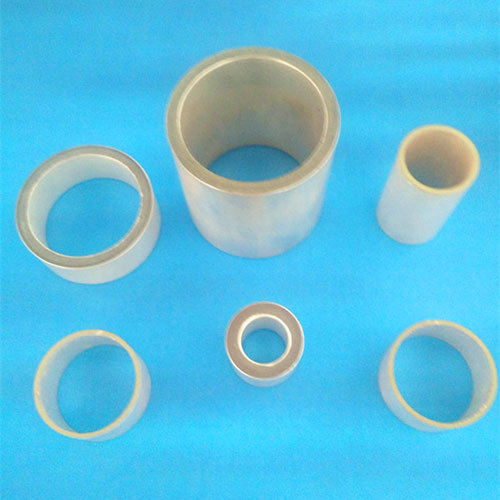

Piezoelectric Ceramic Tube Cylinder

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

Piezoelectric Ceramic Tube(Cylinder) Elements

Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations. The shapes and dimensions of the piezoelectric components can be selected within the limits determined by the tools, although the dimensions depend on each other. The minimum dimensions are determined by physical and technological limits. The thickness or wall thickness, for example, is limited by the mechanical strength of the ceramic during machining.

Brand name:	JUDE
Model No:	JPCQ-P-4-152
Material:	P-4
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Feature:High sensitivity

All direction

Models and Technical Data:

Type	Radial Frequency Fr(KHz)	Coupling constant (k31)%	Static capacitance C(PF)	Piezoelectric changing constant d3310-12(CN)	Agent wear Tg(%)
JPCC-P51-151110	70±5%	30	4680±10%	500	2
JPCC-P51-201615	50±5%	30	9700±10%	500	2
JPCC-P51-252115	39±5%	35	12400±10%	500	2
JPCC-P51-292520	34±5%	35	19400±10%	550	2
JPCC-P51-302518	33±5%	35	14250±10%	550	2
JPCC-P51-322820	36±5%	35	21600±10%	550	2
JPCC-P51-343020	28±5%	35	23000±10%	550	2
JPCC-P51-383225	26±5%	35	21000±10%	550	2
JPCC-P51-403237	25±5%	35	24000±10%	550	2
JPCC-P51-453925	22±5%	35	25200±10%	550	2
JPCC-P51-504425	19±5%	35	28200±10%	550	2
JPCC-P51-553930	19±5%	35	33800±10%	550	2
JPCC-P51-605430	16±5%	35	41000±10%	550	2
JPCC-P51-655930	15±5%	35	44600±10%	550	2
JPCC-P51-756716	13±5%	35	20400±10%	550	2
JPCC-P51-807420	12±5%	35	36900±10%	550	2
JPCC-P51-908420	10±5%	35	52180±10%	550	2

SIZE:

JPCC-P51-151110	15	Outside diameter
	11	Inner diameter
	10	Thickness

Application:Flaw detecting

Thickness measuring

Flow measuring

*All products can be customized according to customer requirements.
