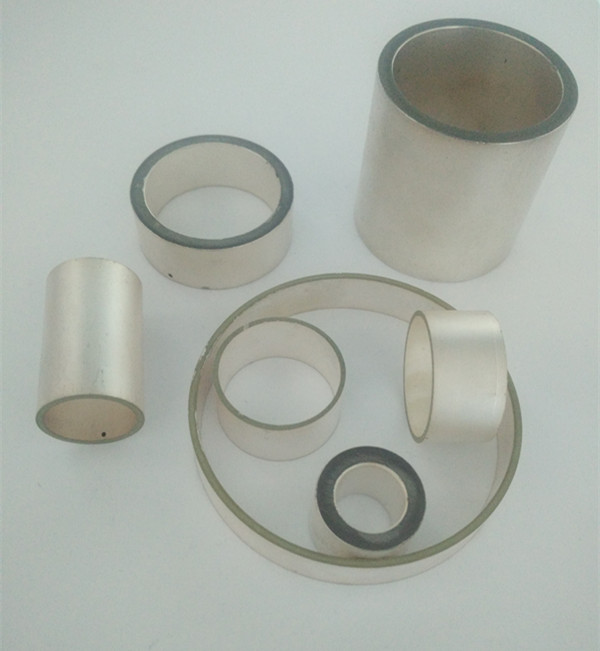

Piezoelectric Ceramic Tube Element

Piezoelectric ceramic tube element usually used for underwater transducer for fishfinders, fishfinders are usually constructed with piezoelectric ceramic components of various shape and sizes depending on the application. Materials for simple sonars could be the hard type of the piezoelectric ceramics, like PZT-4, PZT-8. They provide high power density and high sensitivity.

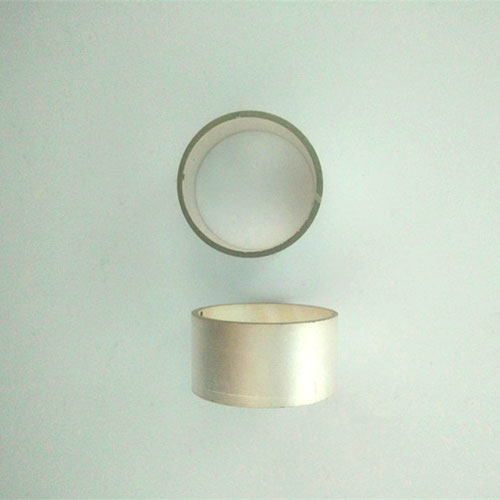

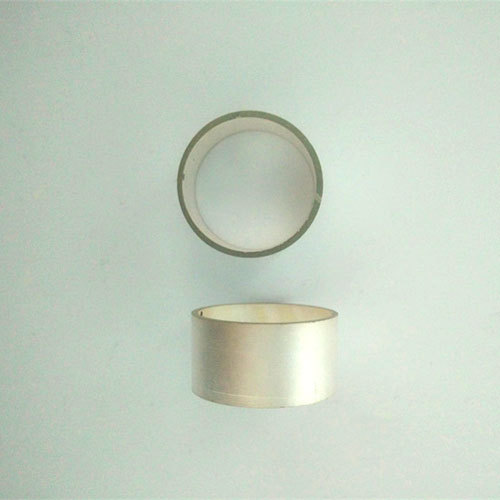

The specifications of piezo tube:

Outer diameter: 82.6mm

Inner diameter: 68.1mm

Height: 32.1mm

Material: P-45

Frequency: 13.7KHz (Radial)

Models and Technical Data:

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
