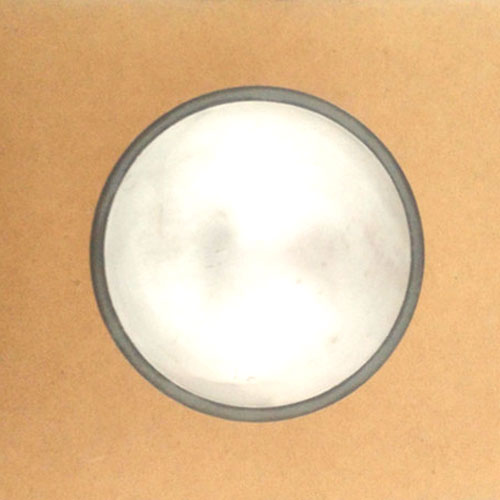

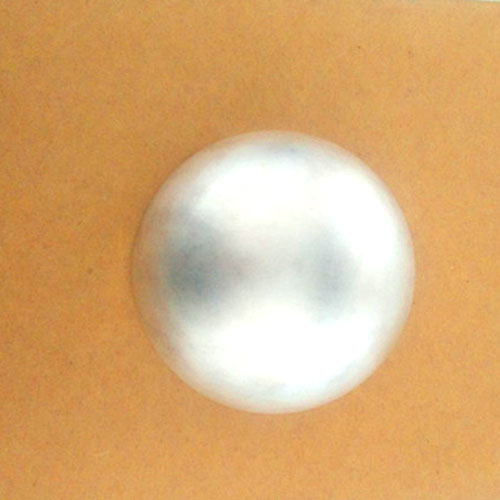

Piezoelectric Ceramic Globpsity and Half Globpsity Product for Marine Detection

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

Piezoelectric Ceramic Globpsity and Half Globpsity Component

Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations. The typical resonant frequencies are between 200 kHz and 10 MHz.

Our modern manufacturing processes allow us to make piezoelectric ceramics components of th ehighest quality and in large quantities. Our company-wide quality management system ensures that the products we offer meet or exceed all of your expections.

Brand name:	JUDE
Model No:	JPCQ-P-4-152
Material:	P-4
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Feature: Good stability

High sensitivity

All direction

Accurate measurement

Application: Used in all-round underwater acoustic and sonar transducer

High sensitivity ultrasonic detection field

Models and Technical Data:

Type	Radial Frequency Fr(KHz)	Coupling constant (k31)%	Static capacitance C(PF)	Piezoelectric changing constant d3310-12(CN)	Agent wear Tg(%)
JPCQ-P-4-152	150±5%	≥0.35	65000±15%	>300	<3
JPCQ-P-4-101	220±5%	≥0.35	45000±15%	>300	<3
JPCQ-P-4-76.2	350±5%	≥0.35	22000±15%	>300	<3
JPCQ-P-4-55.6	410±5%	≥0.35	18000±15%	>300	<3
JPCQ-P-4-25.4	780±5%	≥0.35	8000±15%	>300	<3
JPCQ-P-4-08	3100±5%	≥0.35	900±15%	>300	<3

*All products can be customized according to customer requirements.

We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
