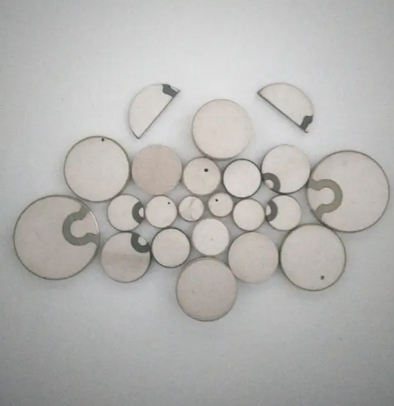

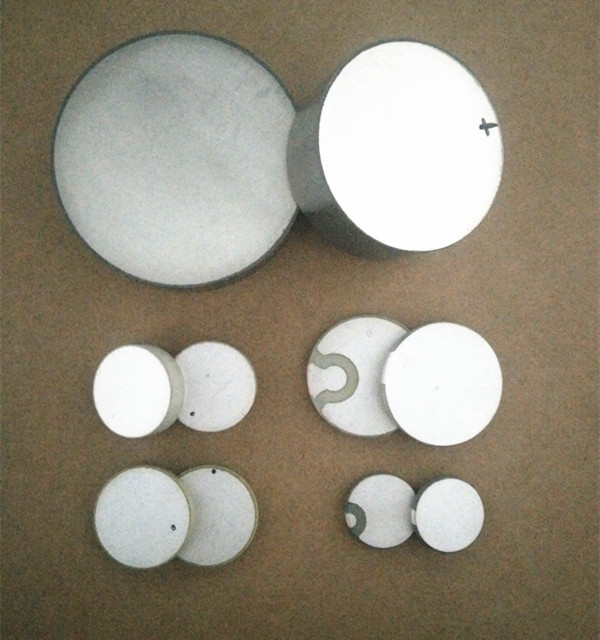

Piezoelectric Ceramic Disc Element PZT 5 for Ultrasonic Flowmeter Sensor

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

Specification and technical datas as following:

Article No.	Radial frequency(khz)	Coupling coefficient(kp%)	CapacityC(pf)	Piezoelectric changingconstant d33	Agent wearTg(%)
Article No.	Radial frequency(khz)	Coupling coefficient(kp%)	CapacityC(pf)	Piezoelectric changingconstant d33	Agent wearTg(%)
JDCP-P51-100002	192±5%	65	770±10%	580	2
JDCP-P51-120002	160±5%	65	1200±10%	580	2
JDCP-P51-150002	128±5%	65	2140±10%	580	2
JDCP-P51-200002	97±5%	65	3700±10%	580	2
JDCP-P51-250002	77±5%	65	5800±10%	580	2
JDCP-P51-400002	49±5%	65	14500±10%	580	2
JDCP-P51-450002	43±5%	65	19380±10%	580	2
JDCP-P51-500002	39±5%	65	23830±10%	550	2
JDCP-P51-281406	46±5%	65	1840±10%	550	2
JDCP-P51-301006	48±5%	65	2500±10%	560	2
JDCP-P51-301206	46±5%	65	2360±10%	560	2
JDCP-P51-301406	44±5%	65	2200±10%	560	2
JDCP-P51-341206	42±5%	65	3160±10%	560	2
JDCP-P51-341406	40±5%	65	3000±10%	560	2
JDCP-P51-381505	37±5%	65	4570±10%	560	2
JDCP-P51-381506	37±5%	65	3800±10%	560	2

Application:
Ultrasonic transducer
Piezoelectric sensor
Ultrasonic cleaner, welding machines, cutting machines
Ultrasonic atomization transducer

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
