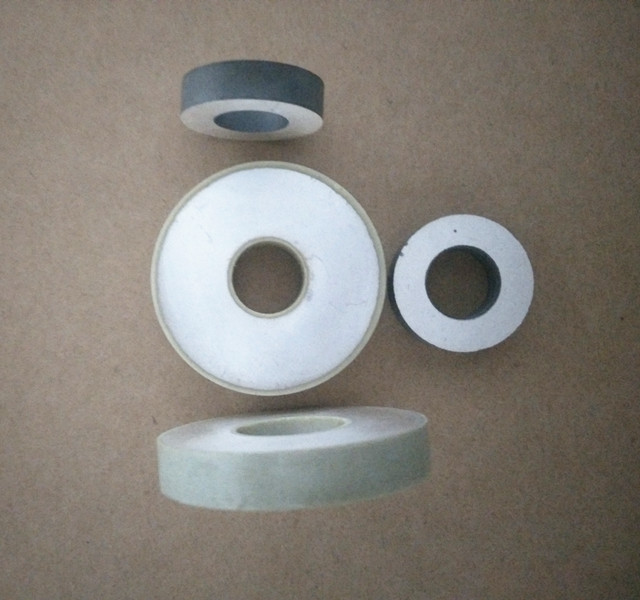

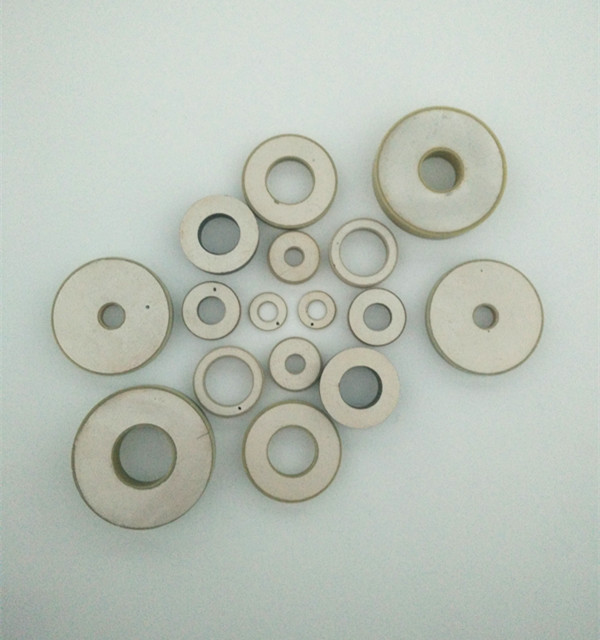

PZT piezoelectric ceramics rings for ultrasonic transducer Jude manufacture

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

Weifang Jude Electronic Co.,Ltd products piezoelectric ceramics for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.

Specification and technical datas as following:

Article No.	Radial frequency(khz)	Resonant impedance(Ω)	Coupling coefficient(k31%)	Capacity C(pf)	Piezoelectric changing constant d33
Article No.	Radial frequency(khz)	Resonant impedance(Ω)	Coupling coefficient(k31%)	Capacity C(pf)	Piezoelectric changing constant d33
JDCC-P81-120603	128±5%	≤20	40	200±10%	260
JDCC-P81-150603	109±5%	≤18	40	498±10%	260
JDCC-P81-200603	88±5%	≤15	40	912±10%	260
JDCC-P81-251003	66±5%	≤22	42	1310±10%	260
JDCC-P81-251006	66±5%	≤24	42	660±10%	260
JDCC-P81-301506	50±5%	≤20	40	850±10%	260
JDCC-P81-302004	44±5%	≤18	40	1170±10%	260
JDCC-P81-351505	46±5%	≤15	43	1500±10%	260
JDCC-P81-351506	46±5%	≤17	43	1250±10%	260
JDCC-P81-381505	44±5%	≤15	43	1800±10%	260
JDCC-P81-451506	39±5%	≤12	43	1800±10%	270
JDCC-P81-500003	50±5%	≤5	45	5150±10%	270
JDCC-P81-501706	34±5%	≤15	43	2750±10%	270
JDCC-P81-502006	33±5%	≤20	40	2600±10%	260
JDCC-P81-502306	32±5%	≤20	40	2300±10%	250
JDCC-P81-603010	26±5%	≤28	36	1900±10%	240
JDCC-P81-703010	23±5%	≤25	36	2800±10%	240

Application:
piezoelectric ceramics have a wide range of uses.such as:
ultrasnic welding transducer
ultrasonic cleaning transducer for ultrasonic cleaner
ultrasonic hole drilling transducer
surgical knives

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
