ULTRA HIGH VOLTAGE CERAMIC CAPACITOR

Features:

The rated voltage UR is more than 10KV.DC.

Samll size and high-dielectric strength voltage

Coated with flame-retardant epoxy resin.

Low dissipation factor and excellent frequency characteristics.

This kind of capacitors are mainly composed of CT81. CC81 radial lead type, HFC, ZHC mold type and HPC high voltage network capacitors.

Applications:

High -voltage DC power supplies, such as Lasers, X-ray apparatus, Air cleaners, etc.

Used in focus circuits for color display, making image focus better of whole screen.

Used in the electrostatic coating machines.

Specification:

• Rated voltage(Ur): 10-40KV.DC

• Nominal capacitance: 1-10000PF

• Tolerance : J: ±5%; K；±10%; M: ±20%

• Temp. Char.: Bn, B, R, D, E, F, SL, YL.

• Dissipation factor: Bn≤0.5%   R,D≤0.2%

• B,E,F≤2.5% (1KHz)

• SL,YL≤0.15% (1MHz)

• Insulation resistance: 10000M Ω min.

• Test voltage: 1.5UR

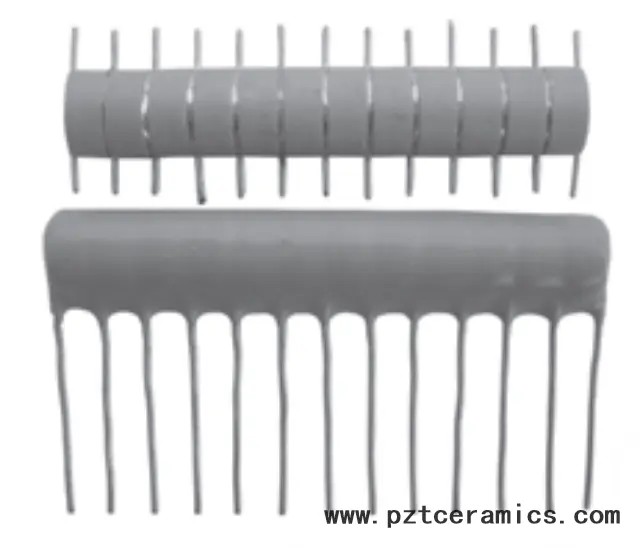

HPC High Volatge Capacitor Row:

Specifications:

Rated voltage: 10-30KV

Rated capacity: 100-1000PF

Dielectric loss: ≤2.0%
