HIFU for Ultrasonic Beauty Devices

Phone : +86-15165670777

Whatsapp : +86 13854402335

Email : sales@pztceramics.com

◉ PRODUCT SPECIFICATION

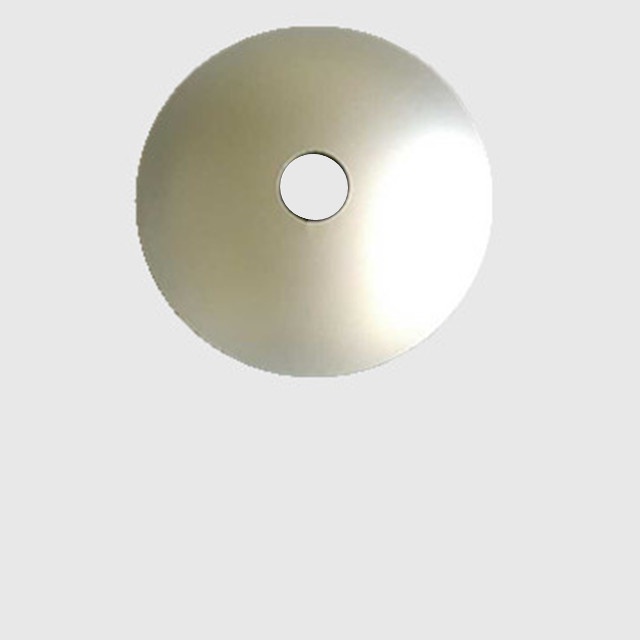

HIFU PZT Ultrasonic Beauty Devices
Piezoelectric Ceramics Spherical Cap

Brand name:	JUDE
Material:	PZT
Customized:	Yes
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Material Feature: Transmission Power
Stability
Consistency

Product name	Piezoelectric ceramics element		Specification	Φ74.5*8.5		Material type	6#
Num	Fs(Fz)	FP(Hz)	FP-Fs(Hz)	CT(nf)	Rl(ohm)	keff	KP	d33
1	243600	270000	26400	7.35061	4.24	0.431	0.524	360
2	242200	268000	25800	7.57302	1.4	0.428	0.519	362

Product name	Piezoelectric ceramics element		Specification	Φ97.5*8.5		Material type	6#
Num	Fs(Fz)	FP(Hz)	FP-Fs(Hz)	CT(nf)	Rl(ohm)	keff	KP	d33
1	238800	262000	23200	13.06193	0.42	0.411	0.496	359
2	244160	262000	17840	12.76461	4.99	0.363	0.43	360
3	239400	262000	22600	12.95341	1.39	0.406	0.489	365
4	239040	262000	22960	12.99215	0.32	0.409	0.493	358
5	239040	262000	22960	13.00963	0.35	0.409	0.493	362

*All products can be customized according to customer requirements.

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .

We have enough foam inner packing and skin packing .
