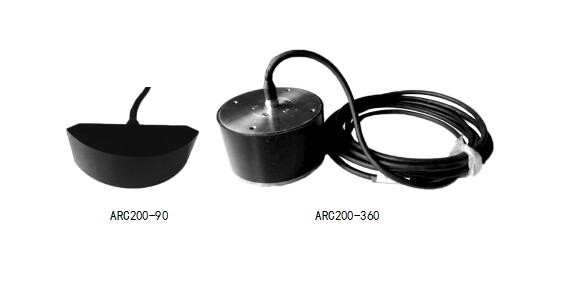

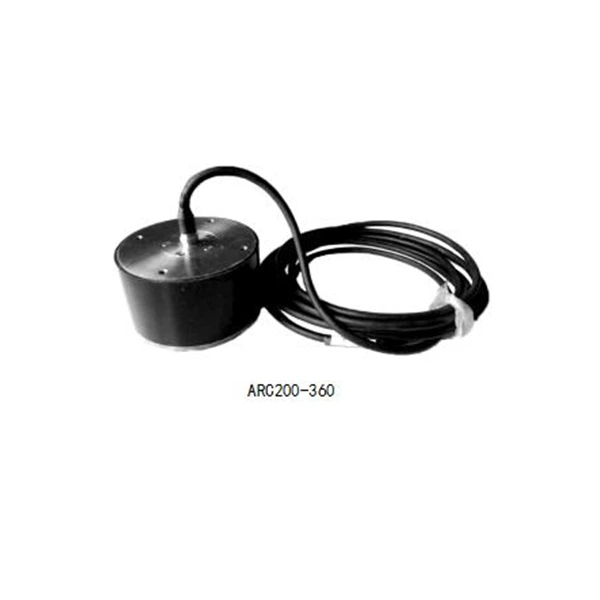

Arc Array Transducer Piezoelectric Composite Material for Underwater Transducer

The arc array transducer adopts a composite arc-array sensitive component, and the arc-array sensitive component is made of 1-3 type piezoelectric material through a special molding process to form a curved surface matrix, and adjusting the radius of the forming mold of arc array sensitive component, the curvature of arc-array sensitive component can be adjusted. The arc-array sensitive component breaks through the bottleneck of the current 1-3 type piezoelectric composite material which is difficult to form a curved surface matrix. It has good uniformity and can be formed in a large area, and it has high electromechanical coupling and large bandwidth of 1-3 piezoelectric composite material, so as to achieve high frequency wide bandwidth beam emission acoustic signal.

Application direction:

high-frequency imaging sonar, wide-band wide-open-angle multi-beam bathymeter, high-frequency wide-beam sound source, etc.

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research and Development Institute:www.xjtcyjy.com

Certification:

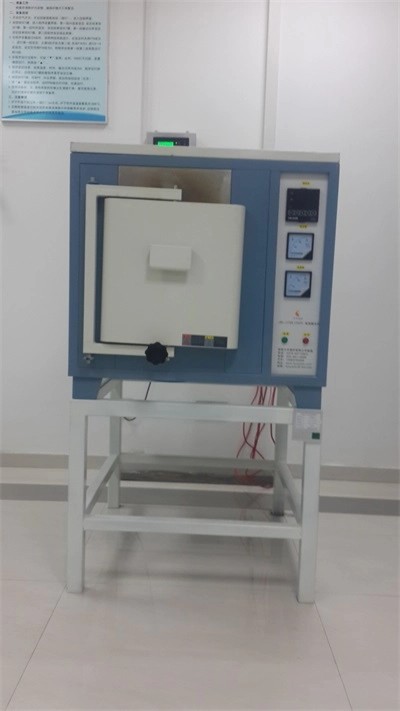

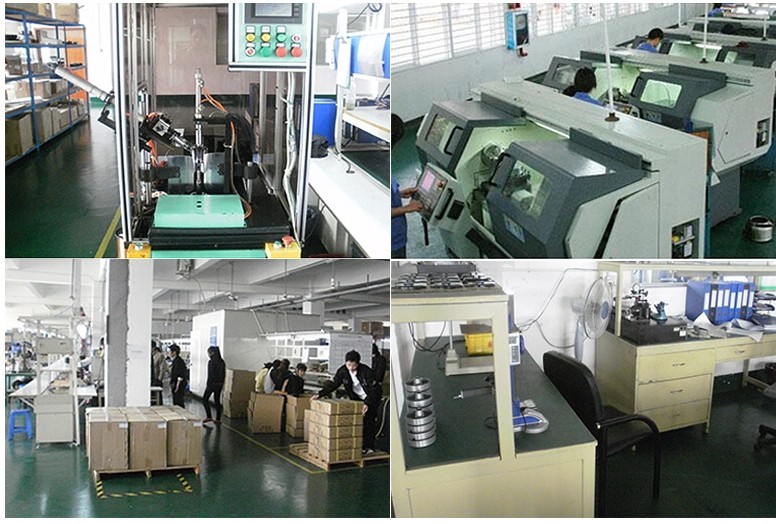

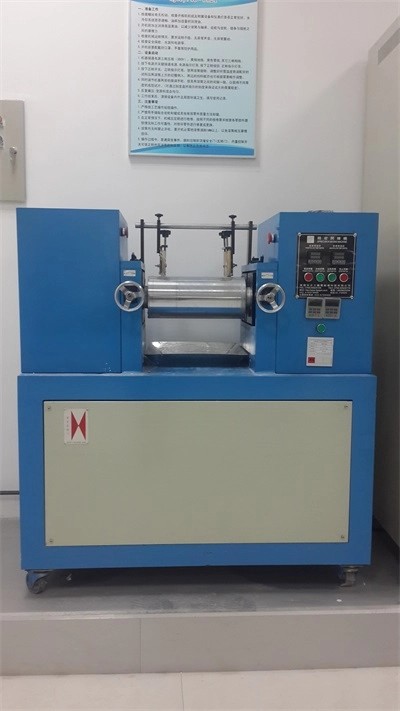

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.

Transport time: one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
