What are the Main Applications of the Piezoelectric Ceramic Tube?

Views: 65     Author: Site Editor     Publish Time: 2022-09-19      Origin: Site


Introduction of piezoelectric ceramic tube


Piezoelectric ceramic tubes are the most commonly used type of ceramic tubes due to the versatility anc efficiency of their design. They have a variety of uses in electronics, micro-electromechanical systems, and sensors. Piezoelectric ceramics are valuable in these fields because they excel at transmitting power easily and making power voltages with low levels of distortion and noise.


image (8)

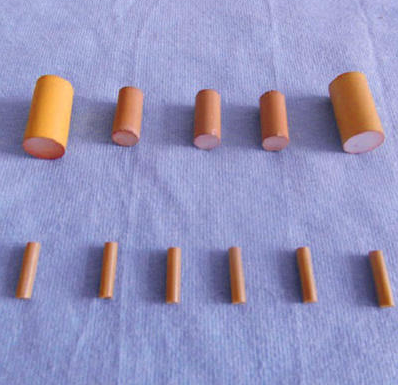

Piezo Tube


This allows for more efficient transmissions such as those required for wireless communication. Piezoelectric ceramic tubes are built with a variety of piezoceramics including aluminium nitride and lead zirconate titanate.



Advantages of piezoelectric ceramic tube


The main advantages of piezoelectric ceramic tubes are their ability to have continuous duty cycles, their quick response times, and their ability to withstand high temperatures. These tubes have a very large range of frequencies that they can use.  Unlike other types of ceramic tubes, piezoelectric tubes are not limited to the frequency range that they were built for.


This is because they are piezoelectric, which means that they have the property of generating an electric charge when they are deformed, especially under a strong mechanical force. In this way, the property allows them to be used in many different situations as well as to cover large ranges of frequencies.


image (9)

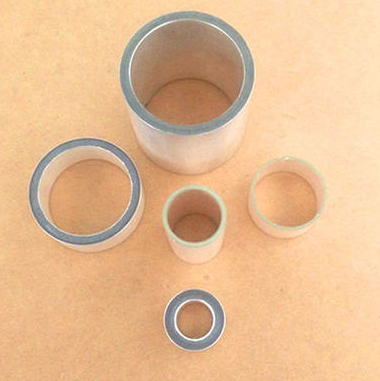

Piezoelectric ceramic cylindrical components


Piezoelectric tubes can protect more than just themselves. They can also be used to protect other devices placed in close proximity to them, such as those in the use of semiconductor chips. This is because piezoelectric ceramic tubes are the type of materials that are able to withstand the high temperatures of semiconductor chips. Although this has not been studied thoroughly, it is likely that piezoelectric ceramic tubes may have the ability to easily respond to electronic signals at much higher frequencies than other types of ceramic tubes. This is because of the high levels of mechanical forces that can be applied to them.


Piezoelectric ceramic tubes are not limited to just producing power and transmitting it; they can also work in the other direction, to generate a voltage after being mechanically deformed. This allows for easy device designs that are able to act as sensors as well. This property is mainly used in pressure sensors and accelerometers.


image (10)

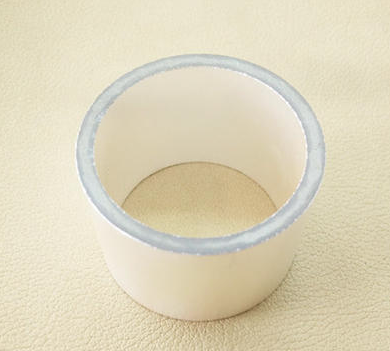

Piezoelectric ceramics tube components


The main applications of piezoelectric ceramic tubes are in the field of electronics, micro-electromechanical systems, and sensors. This is because they are able to efficiently transmit power such as those required to power semiconductor chips without any loss in communication or quality of the signal. This allows for them to be used in many different situations such as being used as a sensor to accurately measure pressure and other mechanical forces.


Another field where they are commonly used is microfluidics. This type of technology requires piezoelectric ceramics because they can efficiently transmit and receive information in such liquids as opposed to other types of tubes.



Disadvantages of piezoelectric ceramic tube


The main disadvantages of piezoelectric ceramic tubes include the fact that their lifespan is low,coupled with the fact that their costs are relatively higher than those of comparable materials. These disadvantages are due to the difficulty in producing such tubes as well as their need for high levels of processing steps.


Most commonly, piezoelectric ceramic tubes are made from aluminium nitride and lead zirconate titanate. This is because these materials are able to easily withstand the high mechanical forces that their role requires without losing any of their properties. However, other materials have been used for this purpose as well, for example, quartz crystals and silicon piezoceramic ceramics.



Conclusion


Piezoelectric ceramic tubes have a variety of applications in electronics, micro- electromechanical systems, and sensors. Because of their piezoelectric property and ability to transmit power at high frequencies with little loss or distortion, they are able to be used in these fields with relative ease.


Piezoelectric ceramic tubes are relatively easy to design and can be built using a variety of materials for their construction. They are able to easily withstand the high mechanical forces that are required for their applications without losing any of their properties.
