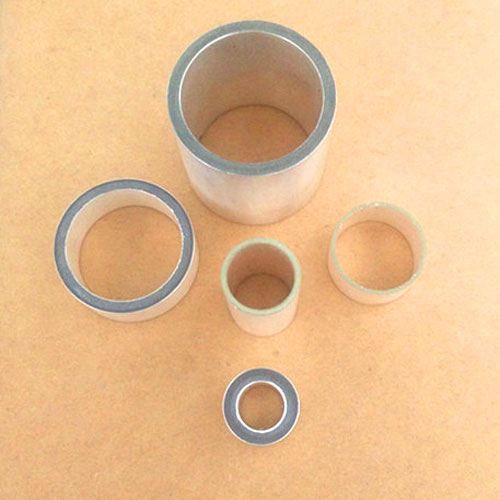

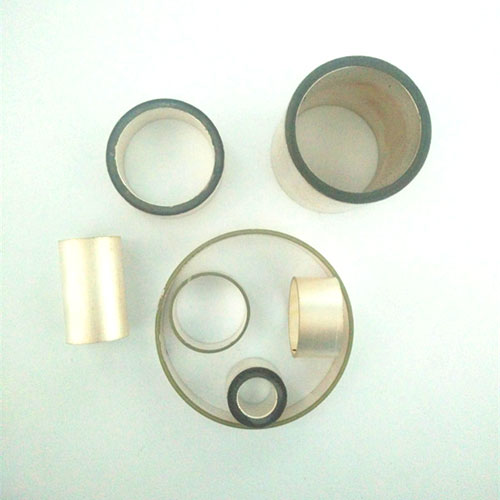

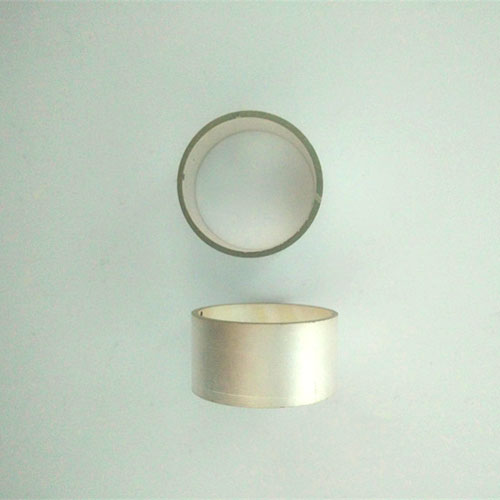

Piezoelectric Ceramic Tube(Cylinder) Components
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations.
The typical resonant frequencies are between 200 kHz and 10 MHz.
The shapes and dimensions of the piezoelectric components can be selected within the limits determined by the tools, although the dimensions depend on each other. The minimum dimensions are determined by physical and technological limits. The thickness or wall thickness, for example, is limited by the mechanical strength of the ceramic during machining.

Feature:High sensitivity
              All direction

Models and Technical Data:

Type	Radial Frequency Fr(KHz)	Coupling constant ()%	Static capacitance C(PF)	Piezoelectric changing constant (CN)	Agent wear Tg(%)
JPCC-P51-151110	70±5%	30	4680±10%	500	2
JPCC-P51-201615	50±5%	30	9700±10%	500	2
JPCC-P51-252115	39±5%	35	12400±10%	500	2
JPCC-P51-292520	34±5%	35	19400±10%	550	2
JPCC-P51-302518	33±5%	35	14250±10%	550	2
JPCC-P51-322820	36±5%	35	21600±10%	550	2
JPCC-P51-343020	28±5%	35	23000±10%	550	2
JPCC-P51-383225	26±5%	35	21000±10%	550	2
JPCC-P51-403237	25±5%	35	24000±10%	550	2
JPCC-P51-453925	22±5%	35	25200±10%	550	2
JPCC-P51-504425	19±5%	35	28200±10%	550	2
JPCC-P51-553930	19±5%	35	33800±10%	550	2
JPCC-P51-605430	16±5%	35	41000±10%	550	2
JPCC-P51-655930	15±5%	35	44600±10%	550	2
JPCC-P51-756716	13±5%	35	20400±10%	550	2
JPCC-P51-807420	12±5%	35	36900±10%	550	2
JPCC-P51-908420	10±5%	35	52180±10%	550	2

SIZE:

*All products can be customized according to customer requirements.
Application: Flaw detecting
                     Thickness measuring
                     Flow measuring
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.

Certification:

Factory:

Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
