Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components. We have our own factory, experienced technical staff, and cooperate with the domestic first-class universities, establish a piezoelectric ceramics R&D room to develop new products and improve product quality.

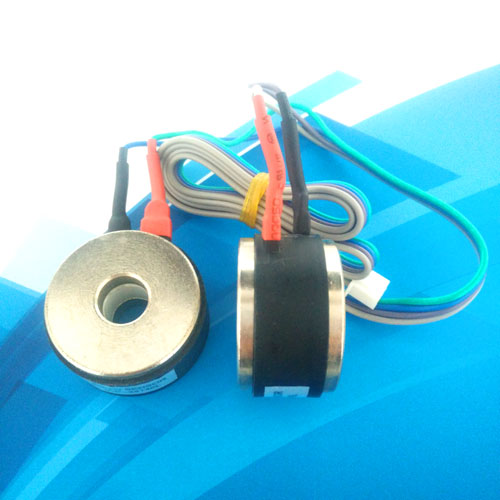

Pressure sensor for tire balancing machines
Effect sensors piezoelectric used for detecting and measuring, and often simultaneously to the detection and measurement of physical quantities-distance, pressure, motion, temperature. This function operate on the principle of conversion, such as a thermocouple, the temperature at the connection. In the piezoelectric elements, which , moreover, the vast majority are used as sensors, makes the conversion of mechnical pressure on the tension.
Brand name: | JUDE |
Model No: | JD6516A-401S |
Material: | PZT-5 |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: Good stability
Good consistency
Accurate measuring
Application: Applied in producing kind s of tire balancing machines
Size:Disc:outside diameter:34mm
inner diameter:14mm
thickness:6mm
Whole body:diameter:39mm
thickness:21mm
Transmitting wire length:25cm or according your requirements.
Models and Technical Data:
Type | Resonance frequency KHz±10% | Resonance impedance | Capacity Pf±10% | Measurement precision |
JD-3934A-402S | 40 | 350 | 2400 | <3g |
JD-3934A-403S | 42 | 400 | 2400 | <3g |
Models and Technical Data:
Type
| Resonance frequency KHz±10% | Resonance impedance | Capacity Pf±10% | Measurement precision |
JD6516A-401S | 65 | 100 | 2200 | <1g |
Types of Signal Transmitting Wire:0.25M, 0.60M, 1.20M, 2.60M.
We can design and produce according to customers’ actual demands and would like to service you against best product and quick delivery.
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price.
The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
