Pressure sensor for wheel balancing machines
JD series wheel balancing machine with piezoelectric ceramic sensor is by WeifangJude Electronic Co.,Ltd independent design, research and development, a new type of piezo sensor for detecting tire balancer, the sensor using self-produced high-quality piezoelectric ceramics, using advanced assembly technology, and finally tested by harsh aging tests, The series of sensors with high sensitivity, accurate measurement, good consistency, good repeatability, waterproof, moistureproof, anti-rust, anti-corrosion, anti-electromagnetic interference and may other advantages, is the first choice for wheel balancing machine industry.
Brand name: | JUDE |
Model No: | JD6516A-401S |
Material: | PZT-5 |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: Good stability
Good consistency
Accurate measuring
Application: Applied in producing kind s of tire balancing machines

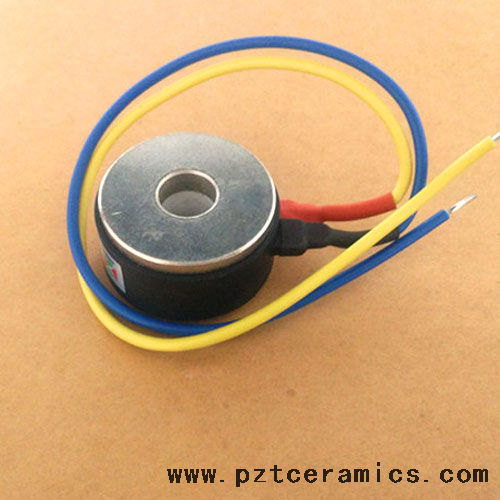

Pressure sensor type 1:
Size:Disc:outside diameter:34mm
inner diameter:14mm
thickness:6mm
Whole body:diameter:39mm
thickness:21mm
Transmitting wire length:25cm or according your requirements.
Models and Technical Data:
Type | Resonance frequency KHz±10% | Resonance impedance | Capacity Pf±10% | Measurement precision |
JD-3934A-402S | 40 | 350 | 2400 | <3g |
JD-3934A-403S | 42 | 400 | 2400 | <3g |

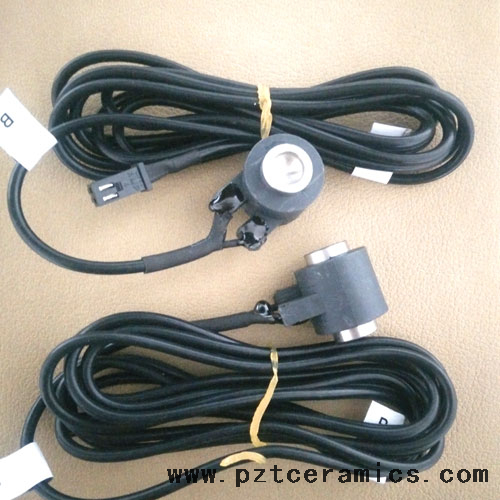

Pressure sensor type 2:
Models and Technical Data:
Type
| Resonance frequency KHz±10% | Resonance impedance | Capacity Pf±10% | Measurement precision |
JD6516A-401S | 65 | 100 | 2200 | <1g |
Types of Signal Transmitting Wire:0.25M, 0.60M, 1.20M, 2.60M.
We can design and produce according to customers’ actual demands and would like to service you against best product and quick delivery.
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and development room:
Equipment picture:precision automatic tablet press machine
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
WhatsApp:+86 13165361320
Skype:Violet Shan(violet.shan@pztceramics.com)
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
