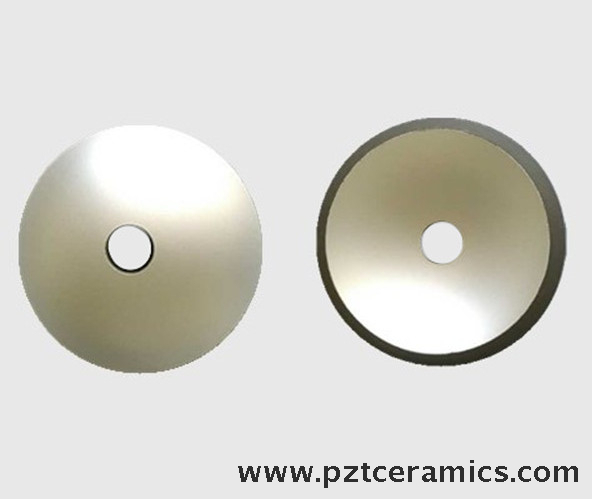

ultrasound transducer for HIFU treatment

High Intensity Focused Ultrasound(HIFU) for Ultrashape

Brand name:	JUDE
Material:	PZT
Customized:	Yes
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Material Feature: Transmission Power
                            Stability
                            Consistency

Product  name	Piezoelectric ceramics element		Specification	Φ74.5*8.5		Material  type	6#
Num	Fs(Fz)	FP(Hz)	FP-Fs(Hz)	CT(nf)	Rl(ohm)	keff	KP	d33
1	243600	270000	26400	7.35061	4.24	0.431	0.524	360
2	242200	268000	25800	7.57302	1.4	0.428	0.519	362

Product name	Piezoelectric ceramics element		Specification	Φ97.5*8.5		Material type	6#
Num	Fs(Fz)	FP(Hz)	FP-Fs(Hz)	CT(nf)	Rl(ohm)	keff	KP	d33
1	238800	262000	23200	13.06193	0.42	0.411	0.496	359
2	244160	262000	17840	12.76461	4.99	0.363	0.43	360
3	239400	262000	22600	12.95341	1.39	0.406	0.489	365
4	239040	262000	22960	12.99215	0.32	0.409	0.493	358
5	239040	262000	22960	13.00963	0.35	0.409	0.493	362

*All products can be customized according to customer requirements.

Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.

Research and development Institute:www.xjtcyjy.com

Certification:

Factory:

Shipping:

Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
