Ultrasonic pipe section type flow sensor
The pipe section sensor is a kind of measurement way which uses the flange to connect the pipe section sensor directly to the measured pipeline. The sensor solves the error caused by the inaccuracy of the artificial or measured pipe parameters during the installation process of the external and the plug-in sensor And the measurement accuracy caused by the problem, with high precision measurement, good stability, maintenance-free features, is the future direction of development of ultrasonic flowmeter.
Model and technical data:

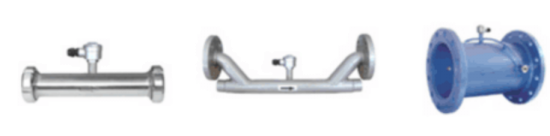

Technical parameter | Hygienic pipe section type | π pipe section type | Standard pipe section type | |
Applicable mainframe | integration, split type, economical and flow module | |||
Applicable caliber | DN25-DN80 | DN15-DN40 | DN50-DN100 | |
Material | stainless steel | Carbon steel (stainless steel optional) | ||
Operating frequency | 1MHz | |||
connection type
| loose joint
| flange connection | ||
Applicable temperature | -40℃~160℃ | |||
Calibration | Whole machine paired calibration | |||
Level protection | IP68（can be diving in water，water depth ≤3 meters） | |||
Nominal pressure | 4.0MPa | 4.0MPa | 0.6~1.6MPa | |
Media type | A single, uniform, steady fluid capable of transmitting ultrasonic waves, such as water, sea water, sewage, alcohol, and various oils. | |||
Medium turbidity | ≤10000ppm, the bubble content is small | |||
Signal cable | 100 meters beyond the recommended special SEYV75-2 type single shielded cable, can be lengthened to 300 meters, wiring cable should be applied to increase the anti interference of metal casing, cable and cable and not parallel, try to avoid the frequency interference. | |||
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and development Institute:www.xjtcyjy.com
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact us:
E-mail:sales@pztceramics.com
Tel/Fax:+86 86 0536 2221236
Skype:Violet Shan
WhatsApp:+86 13165361320
QQ:1078686987
