Ultrasonic Gas Sensor
The piezoelectric ceramic ultrasonic sensor is very sensitive to the characteristics of piezoelectric ceramic ultrasonic sensors, extremely weak mechanical vibrations can be converted into electrical signals, is widely used in sonar systems, weather detection, remote sensing of environmental protection, household appliances and so on. The earthquake is a devastating disaster, and the source in the depths of the earth's crust, before it is difficult to predict, the human being into a helpless embarrassment. Piezoelectric ceramic sensor sensitive to external force which can be induced to make it even more than ten meters outside the insect flapping wings disturbance on the air, it is used to make piezoelectric seismograph, can accurately measure the intensity of the earthquake, the earthquake indicate the direction and distance. It can not be saidIs a large round piezoelectric ceramics.
Brand name: | JUDE |
Material: | Compound |
Customized: | Yes |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Ultrasonic Gas Sensor
Item | Technical Data | |
Name | 200KHz ultrasonic sensor | |
Type | DYA-200-01G1X | |
Frequency | 200KHz±5% | |
Recommended range | 0.10～1.5m | |
Minimum impedance | 960Ω±20% | |
Capacitance | 380pF±20% @1KHz | |
Sensitivity | Load driving voltage∶800Vpp, distance 0.3m Echo amplitude 35mV | |
Operating voltage | Peak voltage＜1000VPP | |
Operating temperature | -40～+80℃ | |
Pressure | ≤3KG or 0.3MPa | |
Angle | (beam width)half-power angle@-3dB:6°±2, Sharpness angle:16°±4 | |
Shell material | Titanium alloy | |
Application | Ultrasonic Gas Flowmeter | |
Installation dimension | Thread：M18*1.5 | |
International Protection | IP68 | |
Weight | 9 g±5%（line lengthy：25cm） | |
Wire instructions | Integrated interface∶ red：transducer＋,white∶ transducer－,black∶ shielded wire,（default without temperature sensor） | |

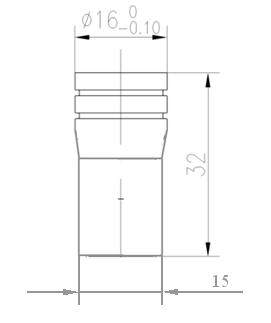

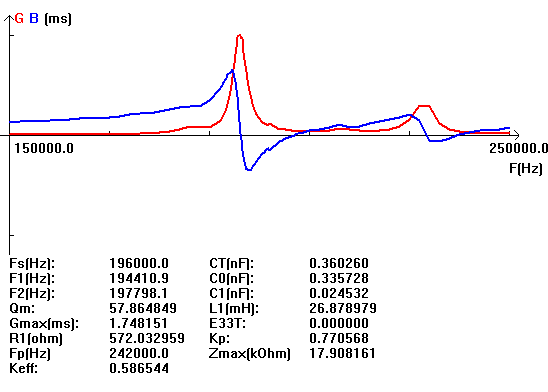

Admittance Curve Graph | Product Structure Drawing | |
| | |
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and Development Institute:www.xjtcyjy.com
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.
Contact:
E-mail:sales@pztceramics.com
WhatsApp:+86 13165361320
Skype:Violet Shan
Tel/Fax:86-0536-2221236
Website:www.pztceramics.com
