Ultrasonic heat water flow sensors
Ultrasonic flow meter sensor :PZT-5 serives material is the most suitable material for flow meter sensor, PZT-5 is often used as the receiver or generator element in hydrophones, accelerometers, and vibration sensors. In ultrasonic flow rate measurement a distinction is made betwen two different measuring principles: the Doppler effect and the analysis of the traveling wave time. In both cases a piezoelectric ceramic transducer positioned on th etube wall generates ultrasonic waves, which are then transmitted into the liquid diagonaly to the direction of flow.
Brand name: | JUDE |
Model No: | JDCR-14002 |
Material: | PZT-5 |
Material for flap: | Plastic material and Stainless metal |
MOQ: | Negotiable |
Supply capacity: | 10000 pair/month |
Packing: | 34×32×24mm/carton, about 5 kg/ctn |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Models and Technical Data:
Type | Center Frequency | Sensitivity | Aftershock | Return ratio | Working temperature | Capacitance | Impedance |
JDRC-14002 | 960±5KHz | >35dB | <10Bus | >0.6mv | 10℃-90℃ | 1200pf±10% | <100Ω |
Material for flap: Plastic material
Stainless metal
Electrical specification:
type | JDRC-14002 | Resonant impedance | <100Ω | Sensitivity | >35db |
capacitance | 1200PF±10% | Center frequency | 960KHz±10KHz | Return radio | >0.6mv |
Aftershock | <10Bus | Work temperature | 0°C-95°C | Sealing method | Epoxy resin potting |
Pressure resistance | >3.0MPa | Degree of protection | IP68 | Lead position | Sensor center |
Note:All materials comply with the requirements of environmental protection, while Piezoelectric ceramic exempt from lead restriction.
Package:
PCS/CTN | Packing plate (cm) | Packing box (cm) | Gross weight ( Kg ) | Net weight ( Kg ) |
500 | 32.5×30×3.5 | 34×32×26 | 6.3 | 5.6 |
Note：
1. Storage Condition:-25°C～11°C.
2. Please take Anti interference into consideration when designing driving circuit.
3. Driving voltage is suggested to be lower than 5Vpp.
4. Operating temperature:0°C～+95°C.
5. Maximum pressure endurance is 3.0MPa.
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.

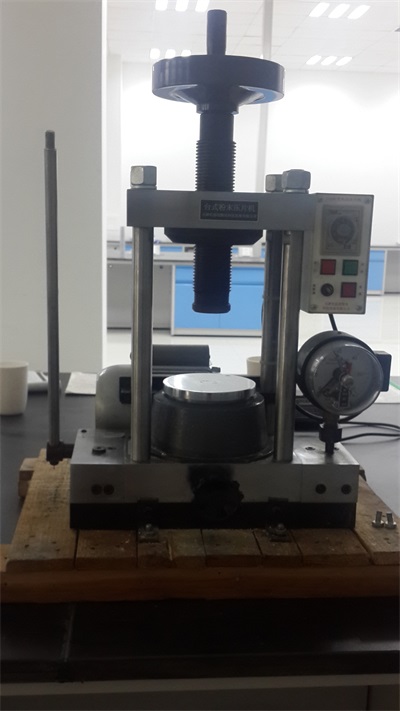

We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and development Institute:www.xjtcyjy.com
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
WhatsAPP:+86 13165361320
Skype: Violet Shan
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
