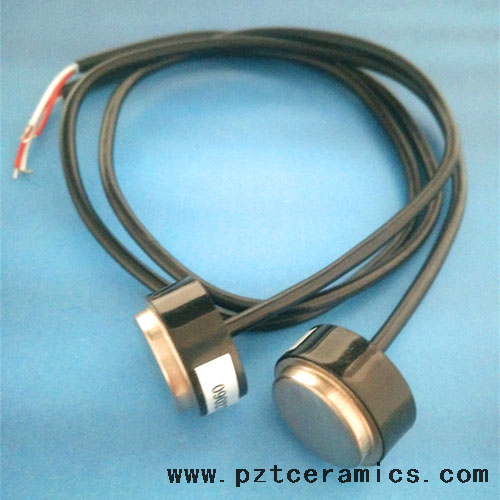

Ultrasonic heat water flow sensors
Ultrasonic flow meter sensor consists of piezoelectric ceramic plate, matching materials and shielding layer, shell, whose character is on the top of the piezoelectric ceramic piece is equipped with signal processing board, the signal processing board of two electrodes respectively welding on piezoelectric ceramic piece, the side below, electrode and shielding wire connection, the signal processing board in the middle of the match on welding electronic components, on the shell of the cavity filling sealing rubber. The ultrasonic transducer, the heat meter can not only improve the consistency of the intensity of the ultrasonic transducer signal and the signal, and can make the piezoelectric ceramic chip generation and transmission signal is consistent with the frequency of ultrasonic vibration, but also has high strength, corrosion resistance, high voltage, high temperature resistant, anti-jamming, high conversion efficiency, good consistency.
Brand name: | JUDE |
Model No: | JDCR-14002 |
Material: | PZT-5 |
Material for flap: | Plastic material and Stainless metal |
MOQ: | Negotiable |
Supply capacity: | 10000 pair/month |
Packing: | 34×32×24mm/carton, about 5 kg/ctn |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Models and Technical Data:
Type | Center Frequency | Sensitivity | Aftershock | Return ratio | Working temperature | Capacitance | Impedance |
JDRC-14001 | 960±5KHz | >35dB | <10Bus | >0.6mv | 10℃-90℃ | 1200pf±10% | <100Ω |
JDRC-14002 | 960±5KHz | >35dB | <10Bus | >0.6mv | 10℃-90℃ | 1200pf±10% | <100Ω |
JDRC-14003 | 960±5KHz | >35dB | <10Bus | >0.6mv | 10℃-90℃ | 1200pf±10% | <100Ω |
Material for flap: Plastic material
Stainless metal
Electrical specification:
type | JDRC-14002 | Resonant impedance | <100Ω | Sensitivity | >35db |
capacitance | 1200PF±10% | Center frequency | 960KHz±10KHz | Return radio | >0.6mv |
Aftershock | <10Bus | Work temperature | 0°C-95°C | Sealing method | Epoxy resin potting |
Pressure resistance | >3.0MPa | Degree of protection | IP68 | Lead position | Sensor center |
Note:All materials comply with the requirements of environmental protection, while Piezoelectric ceramic exempt from lead restriction.
Package:
PCS/CTN | Packing plate (cm) | Packing box (cm) | Gross weight ( Kg ) | Net weight ( Kg ) |
500 | 32.5×30×3.5 | 34×32×26 | 6.3 | 5.6 |
Note：
1. Storage Condition:-25°C～11°C.
2. Please take Anti interference into consideration when designing driving circuit.
3. Driving voltage is suggested to be lower than 5Vpp.
4. Operating temperature:0°C～+95°C.
5. Maximum pressure endurance is 3.0MPa.
*All products can be customized according to customer requirements.
