ultrasonic cleaning transducer for industry cleaning

Availability:



Inquire Add to Basket

Product Description

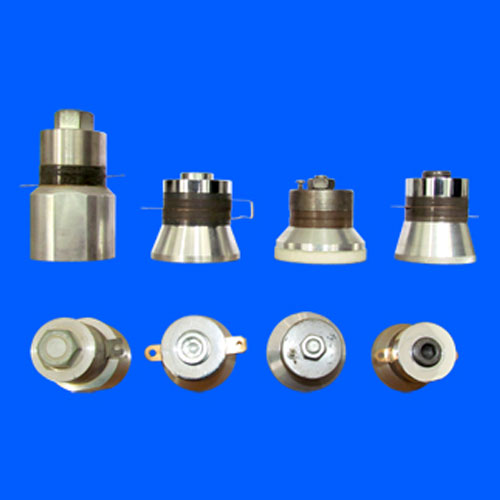

Ultrasonic cleaning transducer

Ultrasonic cleaning works by creating cavitation in a cleaning liquid by means of high-power ultrasonic waves.
End devicescleaning is a topic that covers a very wide range of designs from small eyeglass cleaning baths for opticians all the way to 20m-long industrial cleaning plants with automatic converyor system.ultrasonic cleaning works by creating cavitation in a cleaning liquid by means of high-power ultrasonic waves

Brand name:	JUDE
Model No:	JD5938D-28H
Material:	PZT
MOQ:	Negotiable
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Feature: High quality

High sensitivity

Specification:

Type	Radial Frequency fr(KHZ)	Resonance impedance Rt(%)	capacity C(pf)	Power output w
JD4535D-28H	28	15	4000	50
JD4535D-40H	40	15	4000	50
JD5938D-28H	28	12	5000	60
JD3938D-40H	40	8	5000	50
JD6745D-25H	25	15	6500	100
JD6345D-28H	28	15	6500	100
JD6550D-28H	28	15	7000	120

Size：

JD5938L-28H	JD	Our company code
	59	Diameter of radiating surface
	38	Diameter of PZT
	L	Two pieces PZT crystal
	28	Resonance frequency
	H	trumpet-shape radiating surface

*All products can be customized according to customer requirements.

We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
