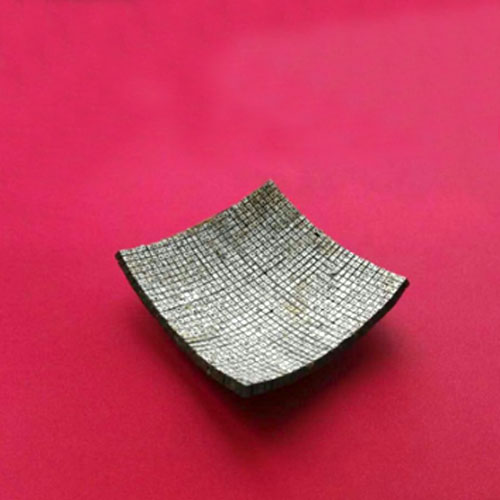

Curved Piezoelectric Composite Material
The piezoelectric composite material is a functional ceramic material capable of converting mechanical energy into electrical energy and mutual conversion. The piezoelectric effect is that some media under mechanical pressure, even if the pressure is small as small as the acoustic vibration, will produce compression or elongation and other shape changes, causing the dielectric surface charge, this is the piezoelectric effect. On the other hand, the application of exciting electric field, the media will produce mechanical deformation, called reverse piezoelectric effect. The use of piezoelectric ceramics to convert electrical energy into ultrasonic vibration, can be used to explore the location and shape of underwater fish, nondestructive testing of metal, and ultrasonic cleaning, ultrasound medical, can also be made of various ultrasonic cutter, welding equipment and Iron, plastic or even metal processing.
Brand name: | JUDE |
Model No: | Piezoelectric composite material |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature:High electric coupling constant
Low agent wear
Small mechanical quality constant
Low acoustic impedance
Application:Fish finder sonar
Collision avoidance sonar
3D image sonar
Side scan sonar
Anti-frogman sonar
Models and Technical Data:
parameter | resonant frequency (KHz) | Resonance point conductance (ms) | Piezoelectric changing constant d33 | Open-angle (°) | Inner diameter (mm) | Wall thickness (mm) | |
Curved piezoelectric composite material | 324 | 264 | >300 | 60 | 86 | 5 | |
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and Development Institute:www.xjtcyjy.com
Certification:

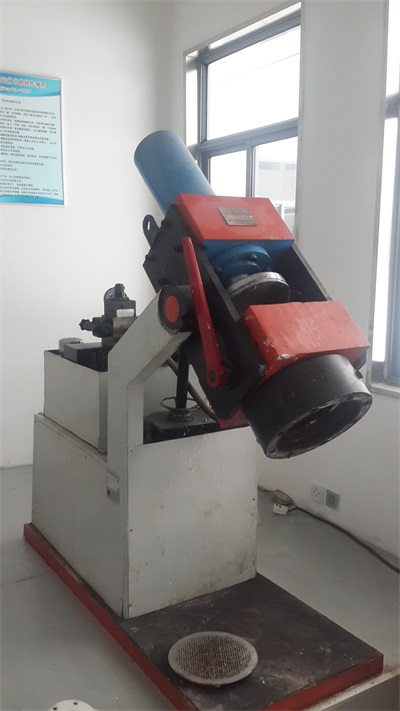

Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
WhatsApp:86 13165361320
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
