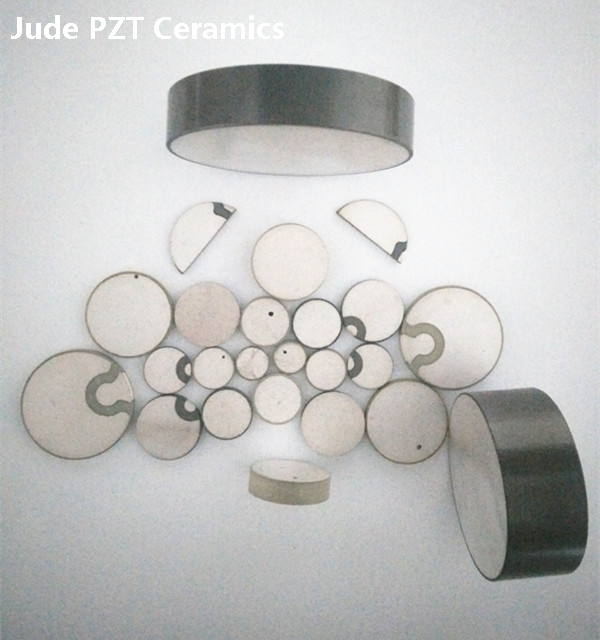

Piezoelectric ceramic disc component
Piezoelectric ceramic components, such as plates, disks or Piezoelectric ceramic rings, convert mechanical signals, such as force, pressure, strain or acceleration, into electrical voltage, or, vice versa, an electrical voltage into mechanical motion or oscillations.
The shapes and dimensions of the piezoelectric components can be selected within the limits determined by the tools, although the dimensions depend on each other. The minimum dimensions are determined by physical and technological limits. The thickness or wall thickness, for example, is limited by the mechanical strength of the ceramic during machining.
| Brand name: | JUDE |
| Model No: | JPCP-P51-100001 |
| Material: | P-51 |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature:High quality
High sensitivity
High capacitance
Type:Single side electrode
Two sided electrode
Models and Technical Data:
| Type | Radial Frequency Fr(KHz) | Coupling constant (k31)% | Static capacitance C(pf) | Piezoelectric changing constant d3310-12(CN) | Agent wear Tg(%) |
| JPCP-P51-100001 | 192±5% | 65 | 770±10% | 580 | 2 |
| JPCP-P51-120002 | 160±5% | 65 | 1200±10% | 580 | 2 |
| JPCP-P51-150002 | 128±5% | 65 | 2140±10% | 580 | 2 |
| JPCP-P51-200002 | 97±5% | 65 | 3700±10% | 580 | 2 |
| JPCP-P51-250002 | 77±5% | 65 | 5800±10% | 580 | 2 |
| JPCP-P51-400002 | 49±5% | 65 | 14500±10% | 580 | 2 |
| JPCP-P51-450002 | 43±5% | 65 | 19380±10% | 580 | 2 |
| JPCP-P51-500002 | 39±5% | 65 | 23830±10% | 550 | 2 |
| JPCP-P51-281406 | 46±5% | 65 | 1840±10% | 550 | 2 |
| JPCP-P51-301006 | 48±5% | 65 | 2500±10% | 560 | 2 |
| JPCP-P51-301206 | 46±5% | 65 | 2360±10% | 560 | 2 |
| JPCP-P51-301406 | 44±5% | 65 | 2200±10% | 560 | 2 |
| JPCP-P51-341206 | 42±5% | 65 | 3160±10% | 560 | 2 |
| JPCP-P51-341406 | 40±5% | 65 | 3000±10% | 560 | 2 |
| JPCP-P51-381505 | 37±5% | 65 | 4570±10% | 560 | 2 |
| JPCP-P51-381506 | 37±5% | 65 | 3800±10% | 560 | 2 |
Application:Ultrasonic fault detecting
Flow rate measurement
Ultrasonic transducer
Distance measurement
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price.
The company achieves the ISO9001 Certification.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic component. We have our own factory, experienced technical staff, and cooperate with the domestic first-class universities, establish a piezoelectric ceramic R&D room to develop new product and improve product quality.
Research Room:
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
