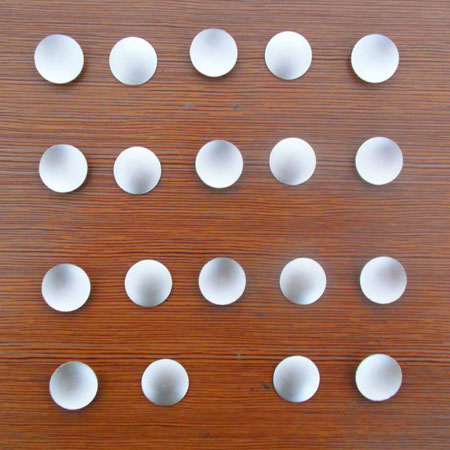

Piezoelectric ceramics spherical cap
Piezoelectric ceramic spherical cap is mainly used for the production of the ultrasonic beauty devices focused transducer, the material has a large transmit power, strong field loss, good stability and consistency, is the first product to produce ultrasonic focused transducer
| Brand name: | JUDE |
| Material: | PZT-8 |
| Customized: | Yes |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Models and Technical Data:
| Material type | Frequency | Electric coupling constant Kp | Piezoelectric constant d33(10-12C/N) | Capacitance C(Pf) | Agent wear |
| PZT-8 | 4MHz | ≥0.55 | ≥250 | 6000±10% | <0.5 |
| 7MHz | ≥0.55 | ≥250 | 8000±10% | <0.5 | |
| 8MHz | ≥0.55 | ≥250 | 9000±10% | <0.5 |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Contact:
Email:sales@pztceramics.com
Tel/Fax:86-0536-2221236
Website:www.pztceramics.com
www.cnjude.com
