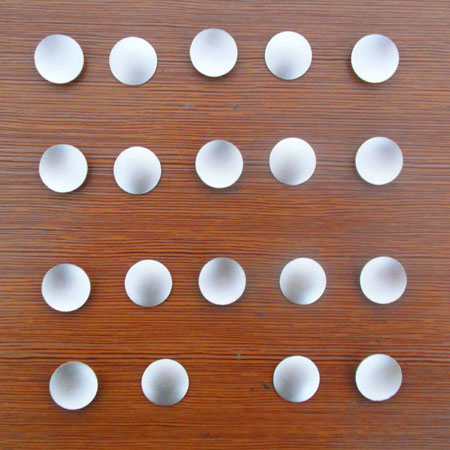

Piezoelectric ceramics spherical cap
Piezoelectric ceramic spherical cap is mainly used for the production of the ultrasonic beauty devices focused transducer, the material has a large transmit power, strong field loss, good stability and consistency, is the first product to produce ultrasonic focused transducer.
Brand name: | JUDE |
Material: | PZT-8 |
Customized: | Yes |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Models and Technical Data:
Material type | Frequency | Electric coupling constant Kp | Piezoelectric constant d3310-12（C/N) | Capacitance C(Pf) | Agent wear
|
PZT-8 | 4MHz | ≥0.55 | ≥250 | 6000±10% | <0.5 |
7MHz | ≥0.55 | ≥250 | 8000±10% | <0.5 | |
8MHz | ≥0.55 | ≥250 | 9000±10% | <0.5 |
Stock | Yes | Certification | ISO9001 |
Uses | Household | Type | JDA-200-01F |
Standard | R14 | Brand | JUDE |
Details:
Physical Property | Insulating | Making Method | Ceramics |
Crystal Structure | Mono-crystal | Output Signal | Numeric Type |
IP Grade | IP68 | Linearity | 0.5%(%F.S.) |
Hysteresis | 0.5%(%F.S.) | Repitition | 0.5%(%F.S.) |
Sensitivity | 120DB | Drifting | 1% |
Resolution | 1mm |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
