ULTRA HIGH VOLTAGE CERAMIC CAPACITOR

Features:

The rated voltage UR is more than 10KV.DC.

Samll size and high-dielectric strength voltage

Coated with flame-retardant epoxy resin.

Low dissipation factor and excellent frequency characteristics.

This kind of capacitors are mainly composed of CT81. CC81 radial lead type, HFC, ZHC mold type and HPC high voltage network capacitors.

Applications:

High -voltage DC power supplies, such as Lasers, X-ray apparatus, Air cleaners, etc.

Used in focus circuits for color display, making image focus better of whole screen.

Used in the electrostatic coating machines.

Specification:

Temperature range	Test condition
-25℃~+85℃	temperature	voltage	frequency
	20±2℃	1.0±0.2V	1 KHz or 1 MHz

• Rated voltage(Ur): 10-40KV.DC

• Nominal capacitance: 1-10000PF

• Tolerance : J: ±5%; K；±10%; M: ±20%

• Temp. Char.: Bn, B, R, D, E, F, SL, YL.

• Dissipation factor: Bn≤0.5%   R,D≤0.2%

• B,E,F≤2.5% (1KHz)

• SL,YL≤0.15% (1MHz)

• Insulation resistance: 10000M Ω min.

• Test voltage: 1.5UR

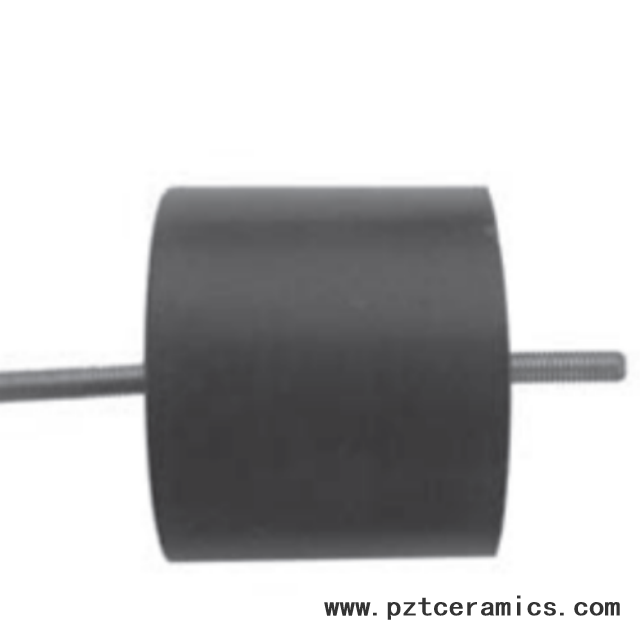

ZHC mode type

Specifications:

Rated voltage: 20-40KV

Rated capacity: 1000-10000PF

Diameter size: Φ25, Φ35, Φ60
