In modern precision measurement systems, displacement sensors play a crucial role in detecting changes in position, distance, or thickness with high accuracy. These sensors are widely used in industrial automation, robotics, automotive systems, and medical devices—anywhere precise motion or position control is required. Among various sensing technologies, piezoelectric ceramics have emerged as one of the most effective materials for producing high-performance displacement sensors due to their sensitivity, responsiveness, and compact size.
As a professional manufacturer of piezoelectric ceramic components, we understand the importance of selecting the right material for reliable and accurate displacement sensing. In this article, we will explain what displacement sensors are, how they work, key applications, and why piezoelectric-based sensors are a top choice for engineers and designers worldwide.
A displacement sensor is a type of transducer used to measure the movement or position of an object from a reference point. The displacement can be linear or angular, depending on the application. These sensors convert physical motion into an electrical signal, which can then be processed or monitored by a control system. Displacement sensors are essential for quality control, automation, precision manufacturing, and structural monitoring.
There are several types of displacement sensors available in the market, each with distinct operating principles and application suitability:
Capacitive Displacement Sensors
These measure changes in capacitance between two conductive surfaces. They offer high resolution and are commonly used in micro-positioning and semiconductor industries.
Inductive (LVDT) Displacement Sensors
Linear Variable Differential Transformers (LVDTs) use electromagnetic principles to detect movement. They are robust and reliable for industrial applications.
Optical Displacement Sensors
These use light (typically laser or infrared) to measure distance and displacement. They are contactless and ideal for high-speed, high-precision tasks.
Piezoelectric Displacement Sensors
Based on the piezoelectric effect, these sensors generate a voltage when mechanically deformed. They are extremely sensitive and suitable for applications requiring high-frequency response and nano-scale measurement.
Piezoelectric materials, such as lead zirconate titanate (PZT), can produce an electrical charge when subjected to mechanical stress. In piezoelectric displacement sensors, this property is utilized to detect minute changes in displacement. When an object moves and exerts pressure on the piezoelectric element, it generates a voltage proportional to the amount of displacement.
Advantages include:
High Sensitivity and Accuracy
Fast Response Time
Compact and Lightweight Design
Excellent Temperature Stability
Key Applications of Displacement Sensors
Displacement sensors are critical in various industries:
Industrial Automation: For position feedback in CNC machines, robotics, and assembly lines.
Automotive: Suspension monitoring, throttle position sensors, and brake systems.
Medical Devices: In surgical robots, dental tools, and diagnostic machines.
Consumer Electronics: Vibration and position sensing in smartphones and gaming devices.
Aerospace and Defense: Structural health monitoring and precision navigation systems.
Piezoelectric ceramics, especially those based on PZT (lead zirconate titanate), have become a preferred material for high-precision displacement sensing applications. These ceramics offer excellent piezoelectric properties, meaning they can efficiently convert mechanical stress into electrical signals. This makes them particularly suitable for applications where even the smallest changes in displacement need to be detected with high sensitivity.
Piezoelectric Ceramic Ring Element
As a professional manufacturer of piezoelectric ceramic components, we provide materials that offer strong and stable performance across a broad range of conditions. Our ceramic elements are highly customizable in terms of shape, thickness, electrode design, and frequency response, allowing sensor designers and engineers to meet specific functional requirements.
Additionally, piezoelectric ceramics are known for their durability, compact size, and fast response time, making them ideal for integration into modern smart devices, industrial machines, and medical equipment. These qualities not only improve measurement accuracy but also help reduce system size and complexity.
Selecting the right displacement sensor depends on several important factors. First, you must consider the required measurement range and resolution—whether the application involves detecting microns of movement or larger-scale shifts. Equally critical is the operating environment; displacement sensors may need to function in high-temperature, high-humidity, or high-vibration conditions, all of which influence the choice of sensing technology and materials.
Response time is another key consideration. Applications in high-speed automation, robotics, or dynamic testing require sensors that can deliver real-time feedback without delay. Furthermore, space constraints often play a role in design decisions—compact, lightweight sensors are increasingly favored in portable or miniaturized systems.
For applications demanding precise, reliable, and responsive measurement, piezoelectric displacement sensors stand out as a top choice. Their combination of high sensitivity, compact design, and resistance to environmental stress makes them suitable for a wide range of industries. By working with an experienced piezoelectric ceramic manufacturer like us, you can ensure that your sensor solutions are optimized for both performance and cost-effectiveness.
Weifang Jude is a professional manufacturer based in China, specializing in the research, development, and production of high-performance piezoelectric ceramic components. With many years of industry experience, our product line includes piezoelectric ceramic discs, rings, tubes, plates, and custom-shaped elements, widely used in sensors, actuators, ultrasonic devices, medical instruments, and industrial automation systems.

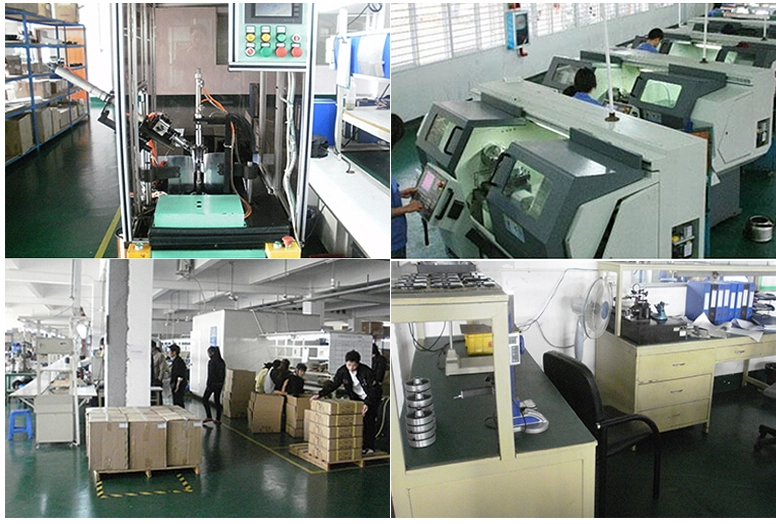

Our factory is equipped with advanced manufacturing equipment and strict quality control processes to ensure high consistency, precision, and reliability of each product. We offer flexible customization services to meet specific technical and application requirements from global clients. At Weifang Jude, we are committed to delivering innovative and cost-effective piezoelectric solutions that support the development of smarter and more efficient technologies.
