What is a Piezo Disc Actuator?

In modern precision engineering and electronic applications, the demand for compact, reliable, and highly responsive actuators is growing rapidly. Among different actuator technologies, the piezo disc actuator has become an indispensable solution in fields ranging from medical devices to consumer electronics. By utilizing the piezoelectric effect, these disc-shaped components offer precise motion control and energy conversion capabilities.





As a leading piezo ceramic components manufacturer in China, Weifang Jude specializes in producing high-quality piezo discs and actuators tailored to global customer needs. This article explores what a piezo disc actuator is, how it works, its benefits, and its wide-ranging applications.



What is a Piezo Disc Actuator?

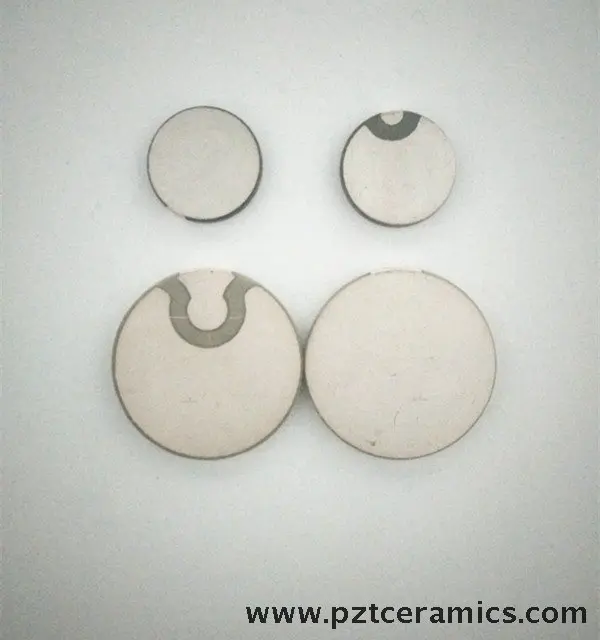

A piezo disc actuator is a thin, disc-shaped device made from piezoelectric ceramic materials. When voltage is applied, the piezoelectric material deforms mechanically, creating precise displacement or vibration. Conversely, when mechanical stress is applied, it generates an electric charge.

Key components include:

• Piezoelectric ceramic layer – the active material that reacts to electrical input.

• Electrodes – thin conductive coatings that apply voltage across the disc.

• Substrate (optional) – to provide mechanical support.



Compared to stack actuators or tube actuators, piezo disc actuators are compact, lightweight, and cost-effective, making them ideal for integration into small electronic devices.



Working Principle of Piezo Disc Actuator

The operation of a piezo disc actuator is based on the piezoelectric effect:

• When an electric field is applied, the ceramic disc undergoes dimensional change, usually in the micrometer or nanometer range.

• This deformation is highly precise and occurs almost instantaneously, giving piezo actuators their exceptional responsiveness.

• The movement is reversible, meaning mechanical stress on the disc can also generate an electrical signal.



This two-way function enables piezo disc actuators to work both as actuators (motion generation) and sensors (signal detection).



Key Features and Benefits

Choosing a piezo disc actuator brings multiple advantages:

• High precision – Capable of sub-micrometer positioning and control.

• Fast response time – Reaction in microseconds, suitable for dynamic applications.

• Compact design – Small size with high energy density, ideal for miniaturized systems.

• Low power consumption – Requires very little energy to maintain displacement.

• Durability and reliability – With proper design, piezo discs offer long operational lifetimes.

• Wide operating range – Effective under varying frequencies, from ultrasonic to low-frequency applications.



Applications of Piezo Disc Actuator

The versatility of piezo disc actuators makes them essential in many industries:

Medical Devices

• Ultrasound imaging probes

• Drug delivery systems

• Microfluidic pumps



Automotive Industry

• Fuel injection systems

• Vibration sensors

• Active noise cancellation components



Consumer Electronics

• Buzzers and speakers

• Haptic feedback devices

• Micro-positioning tools in cameras



Industrial Automation

• Precision measurement instruments

• Non-destructive testing equipment

• Vibration monitoring sensors



Research and Laboratory Equipment

• Atomic force microscopy (AFM)

• Micro-manipulation tools

• Ultrasonic cleaning devices



How to Choose the Right Piezo Disc Actuator

When selecting a piezo disc actuator for your application, consider the following parameters:

• Disc size and thickness – Determines displacement range and resonant frequency.

• Operating frequency – Match the actuator to your required vibration or response frequency.

• Drive voltage – Ensure compatibility with your power system.

• Displacement amplitude – Based on required precision and motion range.

• Environmental conditions – Temperature, humidity, and mechanical stress resistance.



For complex or specialized requirements, working with a reliable manufacturer like Weifang Jude ensures access to customized solutions tailored to your exact specifications.

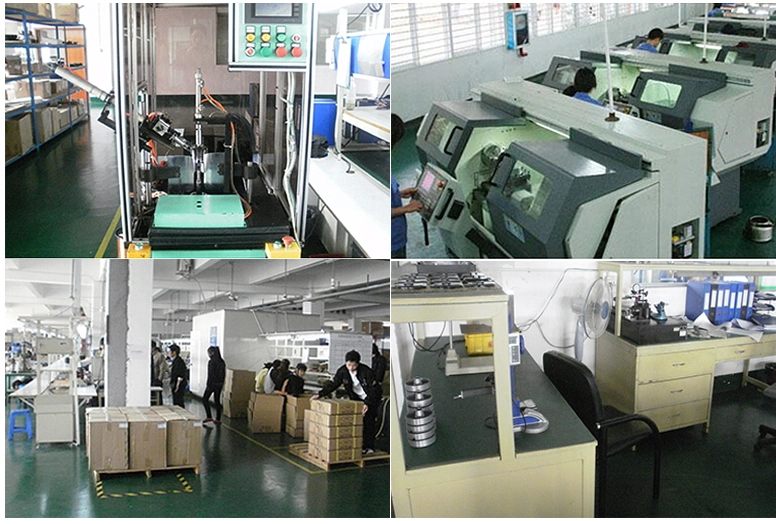

Why Choose Weifang Jude for Piezo Disc Actuators?

As a trusted piezo ceramic components manufacturer in China, Weifang Jude provides:

• Wide product range – Various sizes and specifications of piezo discs, actuators, and transducers.

• Customization – Tailored solutions for specific applications and industries.

• Strict quality control – Ensuring reliability and performance consistency.

• Competitive pricing – Cost-effective solutions without compromising quality.

• Global supply capability – Serving customers worldwide with fast delivery and professional support.



Whether you need standard piezo discs or advanced actuator designs, Weifang Jude has the expertise and manufacturing capacity to meet your needs.



Conclusion

The piezo disc actuator plays a critical role in modern technology, enabling precise motion control, energy conversion, and sensing across multiple industries. Its compact design, rapid response, and versatility make it a preferred choice in medical, automotive, consumer electronics, and industrial applications.





By choosingWeifang Jude as your partner, you gain access to high-quality piezoelectric solutions backed by years of manufacturing expertise. If you are looking for reliable and customized piezo disc actuators, contact Weifang Jude today to discuss your project requirements.
