Piezoelectric composite material is a composite material composed of piezoelectric crystals and non-piezoelectric materials, which has excellent piezoelectric and mechanical properties.

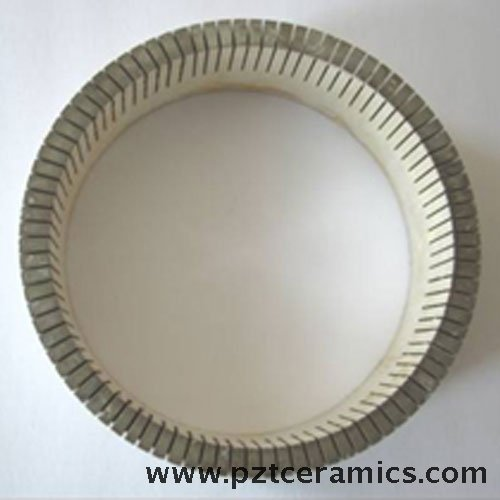

Piezoelectric Composite Material
The piezoelectric effect refers to the phenomenon that certain crystals will generate charge separation and potential difference when they are subjected to an external pressure or electric field. Using this effect, mechanical energy can be converted into electrical energy or electrical energy can be converted into mechanical energy. The basic principle of piezoelectric composite materials is that by combining piezoelectric crystals and non-piezoelectric materials, the piezoelectric effect is enhanced and has wider applications.
The design goal of piezoelectric composites is to improve their mechanical properties, such as strength, toughness, and fatigue resistance, while maintaining piezoelectric properties. This composite material is usually composed of two or more materials, one of which is a piezoelectric crystal material, such as PZT (lead barium zirconate titanate), PZN (lead sodium zirconate), etc.; the other is a non-piezoelectric material, Such as polymers, ceramics, metals, etc.
The preparation methods of piezoelectric composite materials include solid state reaction, sol-gel method, filling of piezoelectric ceramic powder, etc. Through these methods, the uniform distribution and close integration of piezoelectric crystals and non-piezoelectric materials can be achieved, thereby improving the overall performance of the material.
Piezoelectric composites are used in a wide range of applications, such as sensors, actuators, acoustic and acoustic wave devices, and energy harvesting and storage. By adjusting the ratio and structural design of piezoelectric crystals and non-piezoelectric materials in the composite material, different piezoelectric properties and mechanical properties can be achieved to meet different application requirements.
Piezoelectric Composite Material consists of two main components: piezoelectric ceramics and a polymer matrix. Piezoelectric ceramics are special ceramic materials that exhibit the piezoelectric effect, i.e. the ability to separate charges when mechanical stress or an electric field is applied. The commonly used piezoelectric ceramic materials are lead barium zirconate titanate (PZT) and barium lead oxide (PbB). A polymer matrix is a polymer material used to fill and support piezoelectric ceramic particles. Commonly used polymer materials are polyurethane and polyimide.
The special piezoelectric properties of piezoelectric composites result from the interaction between the piezoelectric ceramic and the polymer matrix. When a mechanical stress or an electric field is applied, the piezoceramic particles deform slightly, causing charge separation. This charge separation can be harvested and utilized for applications such as sensors, actuators, energy harvesting and power generation.
Piezoelectric composites have many advantages, including high sensitivity, high voltage output, wide frequency response range, and good durability. In addition, due to the flexibility and plasticity of the polymer matrix, piezoelectric composites can also realize a variety of shapes and strain modes such as bending, stretching, and extrusion, expanding their application fields.
1. Acoustic sensor: Piezoelectric Composite Material can convert acoustic signal into electrical signal, so it is widely used in the field of acoustic sensor. For example, Piezoelectric Composite Material can be used to make ultrasonic sensors for ultrasonic detection and imaging in the medical field.

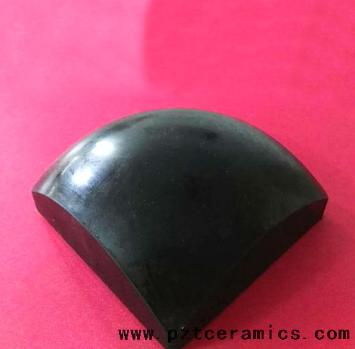

Ultrasonic Composite Material Transducer
2. Vibration energy harvesting: Piezoelectric Composite Material can be converted into electrical energy through mechanical vibration and used to harvest vibration energy in the environment. This energy harvesting technology is widely used in wireless sensor networks, Internet of Things devices, etc., to power and extend the life of devices.
3. Pressure Sensors: Piezoelectric Composite Material can be converted into electrical signals by measuring the pressure changes they are subjected to. This makes them widely used in the field of pressure sensors, for example in industrial automation, automotive engineering and medical equipment for measuring pressure changes.
4. Vibration control: Piezoelectric Composite Material can be used in vibration control systems, such as structural vibration control and adaptive vibration reduction systems in the aerospace field. Effective control of vibration can be achieved by applying an electric field to control the shape and mechanical properties of the Piezoelectric Composite Material.
5. Energy transmission and power generation: Piezoelectric Composite Material can be used for energy transmission and power generation. For example, by using its piezoelectric effect, electrical energy is generated under mechanical stress, thereby realizing energy transmission and power generation. This technology could be applied in areas such as smart structures, energy harvesting, and more.
Piezoelectric composite materials offer several advantages over other materials in various applications due to their unique combination of properties. However, they also have certain limitations that need to be considered. Let's explore both the advantages and potential limitations of piezoelectric composite materials:
Enhanced Performance: Piezoelectric composite materials can be engineered to exhibit superior piezoelectric properties compared to single-phase piezoelectric materials. This enhanced performance includes higher piezoelectric coefficients, which leads to better conversion of mechanical energy into electrical energy and vice versa.
Tailored Properties: Piezoelectric composites allow for the customization of properties by adjusting the composition, geometry, and arrangement of constituent phases. This flexibility enables engineers to design materials that meet specific application requirements, such as frequency response, sensitivity, and temperature stability.
Mechanical Flexibility: Unlike some traditional piezoelectric ceramics that are brittle and prone to cracking under mechanical stress, piezoelectric composites can be engineered to be more mechanically flexible. This is particularly advantageous in applications where the material needs to undergo bending or stretching without compromising its piezoelectric performance.
Broad Frequency Range: Piezoelectric composites can be designed to operate efficiently across a wide frequency range. This versatility makes them suitable for various applications ranging from high-frequency actuators to low-frequency energy harvesters.
Reduced Acoustic Impedance: In medical imaging and sonar applications, piezoelectric composites can be optimized to have lower acoustic impedance, allowing for better acoustic matching with the surrounding medium. This results in improved energy transmission and reception.
Complex Manufacturing: Fabricating piezoelectric composites with precise arrangements of constituent phases can be challenging and expensive. The manufacturing process requires careful control of material deposition, alignment, and bonding techniques to achieve the desired properties.
Trade-offs Between Properties: Designing piezoelectric composites often involves trade-offs between various properties. For example, enhancing one aspect, such as piezoelectric coefficient, might come at the cost of reduced mechanical strength or increased susceptibility to temperature fluctuations.
Anisotropy and Directional Sensitivity: Piezoelectric composites may exhibit anisotropic behavior, meaning their properties can vary depending on the direction of measurement or application of stress. This directional sensitivity can complicate material characterization and device design.
Limited Temperature Stability: Some piezoelectric composite formulations may have limited stability at high temperatures. Elevated temperatures can lead to changes in material properties, affecting their performance and longevity.
Cost and Availability: Depending on the specific composition and manufacturing process, piezoelectric composites can be more expensive to produce compared to traditional piezoelectric ceramics. Additionally, not all variations of piezoelectric composites may be readily available on the market.
In conclusion, piezoelectric composite materials offer a range of advantages, including enhanced performance, tailored properties, and mechanical flexibility. However, they also come with challenges related to manufacturing complexity, trade-offs between properties, and directional sensitivity. Careful consideration of these factors is necessary when selecting piezoelectric composites for specific applications.
