Piezoelectric composite materials are advanced materials that combine piezoelectric ceramics with polymers or epoxies. These composites are designed to harness the piezoelectric properties of ceramics while benefiting from the flexibility and processability of polymers. The combination results in materials with tailorable properties that can be adjusted to meet specific application needs.

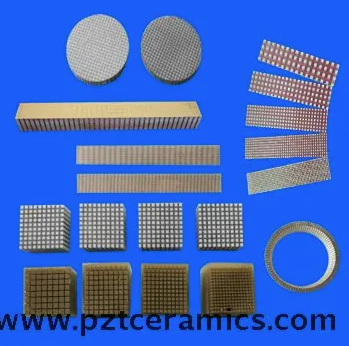

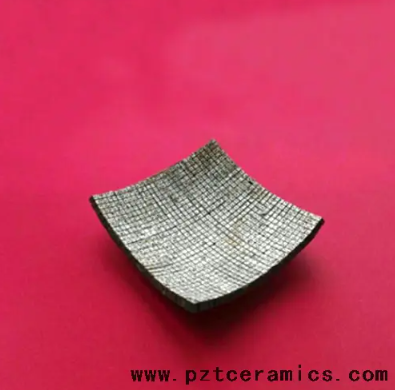

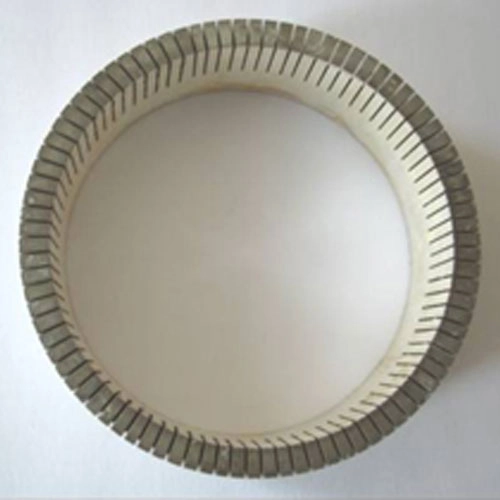

Piezoelectric Composite Material
Composition and Structure
Active Material: Typically, this is a piezoelectric ceramic that provides the piezoelectric effect, which is the ability to convert mechanical stress into electrical energy and vice versa.
Passive Material: This is usually a polymer or epoxy that provides structural support and flexibility. The passive material can also influence the mechanical and thermal properties of the composite.
Connectivity
The concept of connectivity is crucial in piezoelectric composites. It describes the dimensional continuity of the active and passive phases within the composite. Common connectivity patterns include:
1-3 Connectivity: The piezoelectric material is continuous in one dimension, while the polymer is continuous in three dimensions. This configuration is often used because it allows for effective stress transfer and electrical connectivity.
2-2 and 0-3 Connectivities: These configurations represent different arrangements and interactions between the piezoelectric and polymer phases, affecting the composite's overall properties.
Applications
Piezoelectric composites are used in a variety of applications where standard piezoelectric ceramics might not be suitable. These include sensors, actuators, and energy harvesting devices, where the ability to tailor the material properties is beneficial. The flexibility and customizability of these materials make them ideal for innovative applications in fields like medical devices, aerospace, and consumer electronics.
Piezoelectric composites offer several advantages over traditional piezoelectric ceramics, making them suitable for a range of applications, particularly in fields like medical imaging and underwater acoustics. Here are some key advantages:
Improved Acoustic Impedance Matching: Piezoelectric composites have a lower acoustic impedance compared to traditional ceramics, which allows for better matching with biological tissues and water. This characteristic is crucial for applications such as medical ultrasound and sonar, where efficient energy transfer is essential.
Enhanced Electromechanical Coupling: Composites can achieve higher electromechanical coupling coefficients than ceramics alone. This means they can convert electrical energy to mechanical energy (and vice versa) more efficiently, which is beneficial for sensors and actuators.
Flexibility and Customizability: By combining ceramics with polymers, piezoelectric composites gain flexibility, allowing them to be shaped and adapted to various forms and surfaces. This flexibility is particularly useful in medical applications where devices need to conform to complex anatomical structures.
Wider Range of Dielectric Properties: Composites offer a broad range of dielectric constants and lower dielectric losses compared to ceramics, enhancing their performance in electronic applications.
Weight and Efficiency: The lighter density of piezoelectric composites compared to monolithic ceramics makes them advantageous for applications where weight is a concern, such as in unmanned underwater vehicles. This reduction in weight can improve travel and energy efficiency.
These advantages make piezoelectric composites a versatile choice for applications requiring tailored material properties, efficient energy conversion, and adaptability to different environments and surfaces.
Piezoelectric composites are preferred over traditional ceramics in several specific industries due to their unique properties and advantages:
Medical Industry: In medical imaging, particularly ultrasound applications, piezoelectric composites are favored because of their lower acoustic impedance, which better matches that of human tissue. This results in more efficient energy transfer and improved imaging quality.
Aerospace: The flexibility and lightweight nature of piezoelectric composites make them suitable for aerospace applications, where weight reduction is critical for performance and efficiency. Their ability to conform to complex surfaces is also an advantage in this industry.
Consumer Electronics: The adaptability and customizable properties of piezoelectric composites make them ideal for use in consumer electronics, where they can be integrated into devices as sensors or actuators.
Energy Harvesting: Piezoelectric composites are used in energy harvesting devices due to their ability to efficiently convert mechanical energy into electrical energy. Their flexibility and mechanical robustness allow them to be used in various forms, such as thin films and textiles, enhancing their application in wearable technology and other advanced electronics.
Underwater Acoustics: Similar to medical imaging, the lower acoustic impedance of piezoelectric composites is beneficial in underwater acoustics applications, such as sonar, where efficient sound transmission is essential.
These industries benefit from the tailored properties of piezoelectric composites, which offer advantages in terms of flexibility, acoustic matching, and energy conversion efficiency over traditional piezoelectric ceramics.

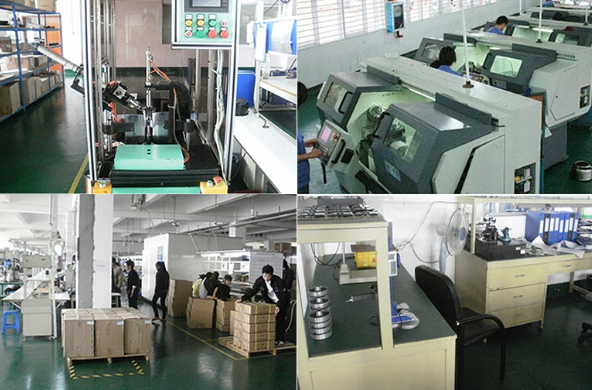

Weifang Jude is a professional piezoelectric composite material manufacturer dedicated to providing high-performance piezoelectric material solutions. The company has extensive experience in the research and development, production and sales of piezoelectric composite materials to meet the needs of various industrial applications.
With advanced manufacturing technology and strict quality control, Weifang Jude ensures that its products are always at the industry-leading level in terms of reliability and performance. Our products are widely used in sensors, actuators, acoustic wave equipment and other fields, providing customers with innovative and efficient solutions.
