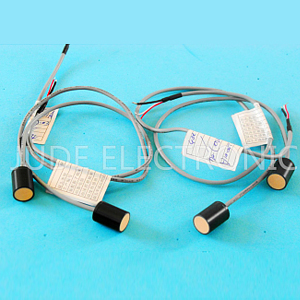

Ultrasonic Gas Sensor
Item | Technical Data | |
Name | 200KHz ultrasonic sensor | |
Type | DYA-200-01A | |
Frequency | 200KHz±5% | |
Recommended range | 0.10～1.5m | |
Minimum impedance | 1005Ω±20% | |
Capacitance | 730pF±20% @1KHz | |
Sensitivity | Load driving voltage:850Vpp, distance 0.3m, Echo amplitude 40mV | |
Operating voltage | Peak voltage＜1000VPP | |
Operating temperature | -40～+80℃ | |
Pressure | ≤3KG or 0.3MPa | |
Angle | (beam width) half-power angle@-3dB:8°±2 Sharpness angle:17°±4 | |
Shell material | POM | |
Application | Ultrasonic level meter, monitoring, anti-collision, security | |
Installation dimension | Dimension:14*20 | |
International Protection | IP68 | |
Weight | 9 g±5%(line lengthy:25cm) | |
Wire instructions | Integrated interface:red:transducer+ ,white：transducer- , black: shielded wire,(default without temperature sensor) | |
Admittance Curve Graph | Product Structure Drawing | |
| | |
Application: Ultrasound Fat Burning, HIFU Ultrasound Knife, Ultrasonic Dispersion.
*All products can be customized according to customer requirements.
Weifang Jude Electronic Co.,Ltd is a manufacturer of piezoelectric ceramic components, we have been engaged in this industry for 20 years, we have our own factory, experienced technical staff, we achieves the ISO 9001 Certification.
We cooperate with the domestic first-class universities, establish a professional piezoelectric ceramic R&D room, with all this support, we can provide the best product quality and best service.
Research and Development Institute:www.xjtcyjy.com
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time: one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact us:
Mail:sales@pztceramics.com
WhatsApp:+86 13165361320
Skype:Violet Shan
Tel/Fax:86-0536-2221236
Website:www.pztceramics.com
