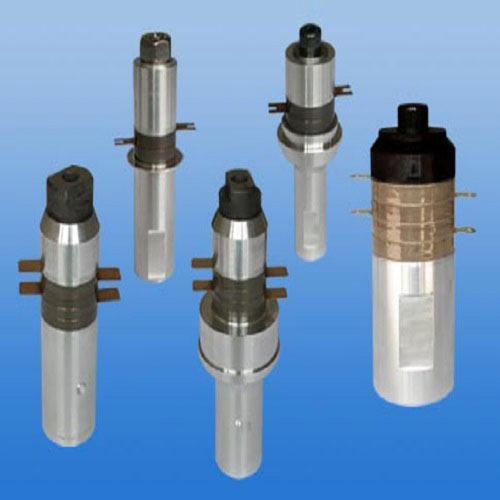

Ultrasonic welding and hole drilling transducer
ultrasonic welding takes advantages of the friction energy generated by the ultrasound at the boundary surfaces.this works with both metal and plastic parts. ultrasonic welding has established itself in industry as a very fast, cost-effective and reliable joining technology.
| Brand name: | JUDE |
| Model No: | JD3028L-28S |
| Material: | PZT |
| MOQ: | Negotiable |
| Payment: | T/T, L/C |
| Order Delivery Time: | Within 30 working days |
| Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature: High quality
High sensitivity
Specification:
| Type | Radial Frequency fr(KHZ) | Resonance impedance Rt(%) | capacity C(pf) | Power output w |
| JD3028L-28S | 28 | ≤20 | 6000 | 200 |
| JD3535L-28S | 28 | ≤18 | 7000 | 400 |
| JD4040L-28S | 20 | ≤18 | 10000 | 1000 |
| JD4545L-28S | 28 | ≤16 | 12000 | 1000 |
| JD5050L-28S | 20 | ≤16 | 15000 | 1200 |
| JD6060L-28S | 15 | ≤16 | 12000 | 1500 |
Size：
| JD4040L-28S | JD: | Our company code |
| 40 | Diameter of radiating surface | |
| 40 | Diameter of PZT | |
| L | Four pieces PZT crystal | |
| 28 | Resonance frequency | |
| S | Prismatic radiating surface |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
