Ultrasonic welding and hole drilling transducer JUDE Manufacture

Availability:
Inquire Add to Basket

Ultrasonic welding and hole drilling transducer

Brand name:                         JUDE
Model No:                               JD3028L-28S
Material:                                  PZT
MOQ:                                       Negotiable
Payment:                                T/T, L/C
Order Delivery Time:            Within 30 working days
Transportation:                      By air via express company, like DHL, TNT, UPS, EMS

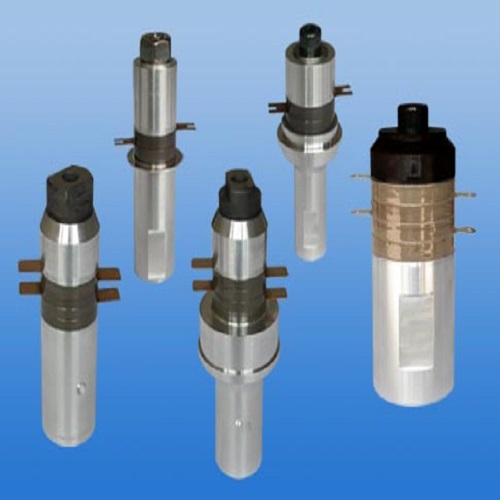

1516welding3

Feature:           High quality
                          High sensitivity

Model and Technical Data:

Type Radial Frequency
fr(KHZ)		 Resonance impedance
Rt(%)		 capacity
C(pf)		 Power output
w
JD3028L-28S 28 ≤20 6000 200
JD3535L-28S 28 ≤18 7000 400
JD4040L-28S 20 ≤18 10000 1000
JD4545L-28S 28 ≤16 12000 1000
JD5050L-28S 20 ≤16 15000 1200
JD6060L-28S 15 ≤16 12000 1500

*All products can be customized according to customer requirements.

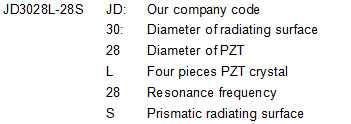

1w
cert

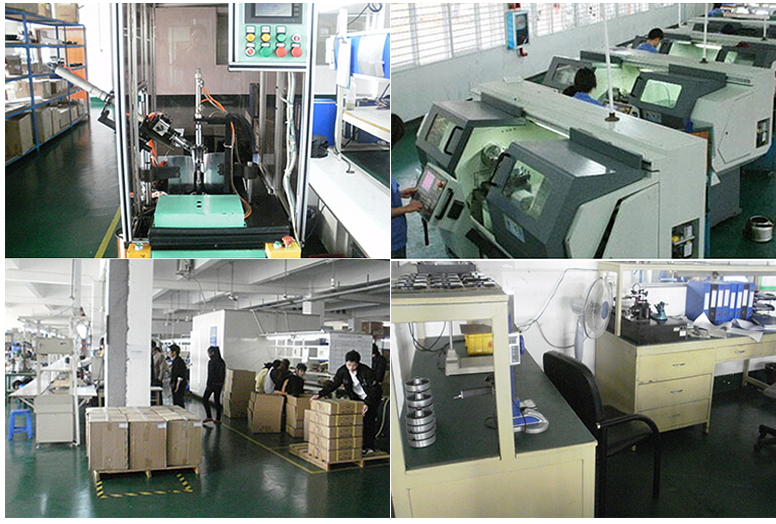

factory
shipping

Contact us:

E-mail:sales@pztceramics.com

Tel/Fax:+86 0536 2221236

Website:www.pztceramics.com

               www.judepzt.com
