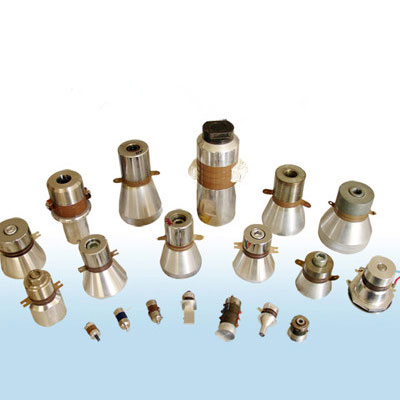

Ultrasonic welding and hole drilling transducer
Weifang Jude Electronic Company is a manufacturer of piezoelectric ceramic component, our products widely used for ultrasonic flow meter, range and detection, sensor for wheel balancer, ultrasonic transducer for cleaning, welding and drilling. Our products have been exported to USA, UK, CANADA, AUSTRIAL, SOUTH AFRICA and MIDEAST etc.
If you are looking for a reliable and long term cooperation partner, please don't hesitate to contact us. We look forward to cooperate with you in future.
Brand name: | JUDE |
Model No: | JD3028L-28S |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Piezoelectric transducer is the use of some of the piezoelectric effect of single crystal materials and some polycrystalline materials of electrostrictive effect to the electrical energy and acoustic energy conversion devices. The word "piezoelectric" literally means electricity caused by pressure. Because of its high electroacoustic efficiency, power capacity and structure and shape can be designed according to different applications, widely used in the field of power ultrasound.
Ultrasonic welding takes advantages of the friction energy generated by the ultrasound at the boundary surfaces. When two performs are pressed together at their connecting surface and excited using high-frequency ultrasound, the surface of the two parts generate so much energy that their connecting surfaces fuse together. This works with both metal and plastic parts.
Models and Technical Data:
Type | Radial Frequency fr(KHZ) | Resonance impedance Rt(%) | capacity C(pf) | Power output w |
JD3028L-28S | 28 | ≤20 | 6000 | 200 |
JD3535L-28S | 28 | ≤18 | 7000 | 400 |
JD4040L-28S | 20 | ≤18 | 10000 | 1000 |
JD4545L-28S | 28 | ≤16 | 12000 | 1000 |
JD5050L-28S | 20 | ≤16 | 15000 | 1200 |
JD6060L-28S | 15 | ≤16 | 12000 | 1500 |
Size：
JD4040L-28S | JD: | Our company code |
40 | Diameter of radiating surface | |
40 | Diameter of PZT | |
L | Four pieces PZT crystal | |
28 | Resonance frequency | |
S | Prismatic radiating surface |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and transducers for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
