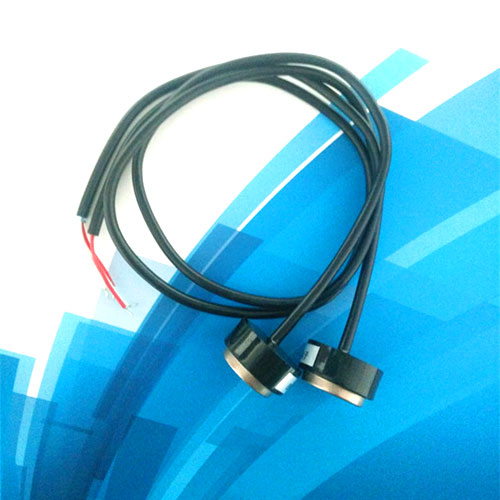

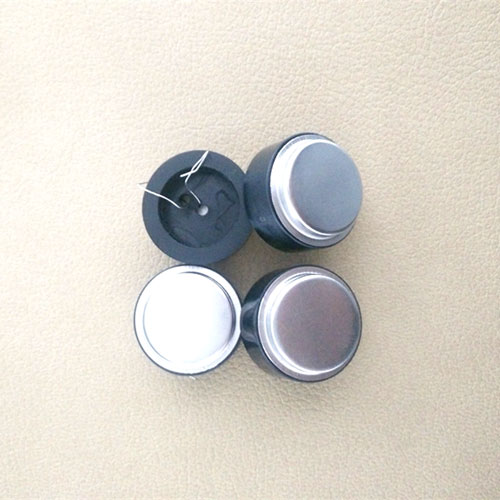

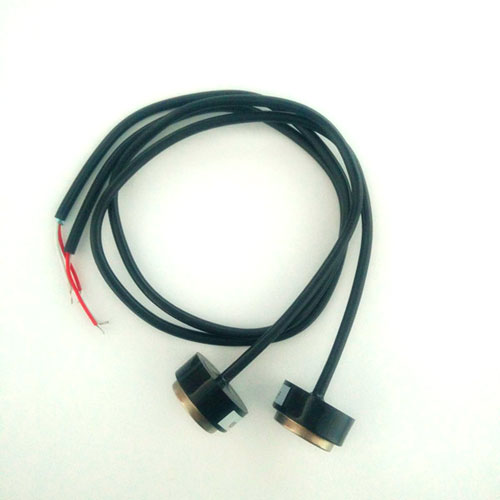

Ultrasonic flow meter sensor PZT-5

Availability:



Inquire Add to Basket

Product Description

Ultrasonic flow sensors

Piezoelectric ceramic transducer positioned on the tube wall generates ultrasonic waves, which are then transmitted into the liquid diagonally to the direction of flow. The advantage of this measuring method is that the measurement is independent of the sound propagation apeed and therefore also the medium, tjis enables the measurement of both liquids and gases.

Brand name:	JUDE

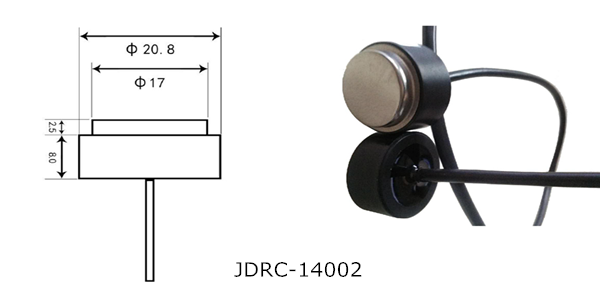

Model No:	JDRC-14002
Material:	PZT-5
Material for flap:	Plastic material and Stainless metal
MOQ:	Negotiable
Supply capacity:	10000 pair/month
Packing:	34×32×24mm/carton, about 5 kg/ctn
Payment:	T/T, L/C
Order Delivery Time:	Within 30 working days
Transportation:	By air via express company, like DHL, TNT, UPS, EMS

Material for flap: plastic material
Stainless metal

Specification:

Type	Center Frequency	Sensitivity	Aftershock	Return ratio	Working temperature	Capacitance	Impedance
JDRC-14001	960±5KHz	>35dB	<10Bus	>0.6mv	10℃-90℃	1200pf±10%	<100Ω
JDRC-14002	960±5KHz	>35dB	<10Bus	>0.6mv	10℃-90℃	1200pf±10%	<100Ω
JDRC-14003	960±5KHz	>35dB	<10Bus	>0.6mv	10℃-90℃	1200pf±10%	<100Ω
