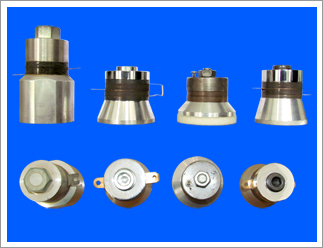

Ultrasonic welding and hole drilling transducer
Brand name: | JUDE |
Model No: | JD3028L-28S |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Ultrasonic welding takes advantages of the friction energy generated by the ultrasound at the boundary surfaces. When two performs are pressed together at their connecting surface and excited using high-frequency ultrasound, the surface of the two parts generate so much energy that their connecting surfaces fuse together. This works with both metal and plastic parts.
Feature:High quality
High sensitivity
Models and Technical Data:
Type | Radial Frequency fr(KHz) | Resonance impedance Rt(%) | capacity C(pf) | Power output w |
JD3028L-28S | 28 | ≤20 | 6000 | 200 |
JD3535L-28S | 28 | ≤18 | 7000 | 400 |
JD4040L-28S | 20 | ≤18 | 10000 | 1000 |
JD4545L-28S | 28 | ≤16 | 12000 | 1000 |
JD5050L-28S | 20 | ≤16 | 15000 | 1200 |
JD6060L-28S | 15 | ≤16 | 12000 | 1500 |
Size:
JD4040L-28S | JD: | Our company code |
40 | Diameter of radiating surface | |
40 | Diameter of PZT | |
L | Four pieces PZT crystal | |
28 | Resonance frequency | |
S | Prismatic radiating surface |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
