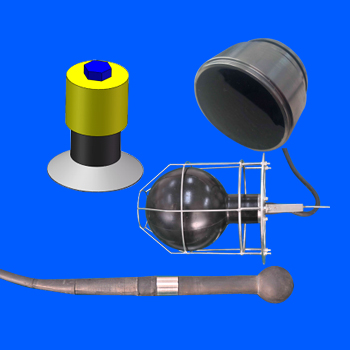

Ultrasonic Sound Transducer
A transducer is any device used to convert electrical energy, mechanical energy or acoustic energy from one form to another; typically when converting input energy into output energy.For transduction to occur, a change from one form of energy must also take place, such as a conversion from mechanical to electrical energy or vice versa. The uses of transducers are widespread, impacting us in many ways. Transducer is the core of the ultrasonic device, its characteristic parameters determine the performance of the entire device.
Brand name: | JUDE |
Material: | PZT-8 |
Customized: | Yes |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Frequency:500 Hz to 15MHz
Transmit voltage response:up to 180dB µPa/V@1m
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 5000m
Beam Angle(-3dB):0.8° to Omnidirection
Product Description:

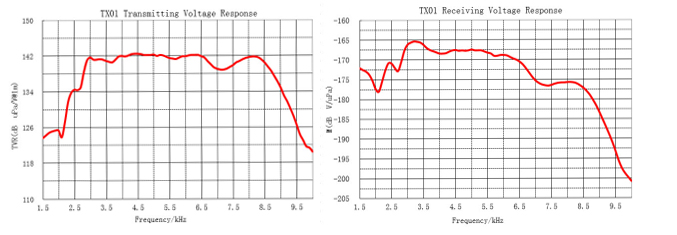

1.High Power Tonpilz Broadband Transducer
Frequency:1.5 to 150KHz
Transmit voltage response:up to 145dB µPa/V@1m
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 5000m
Receiving Sensitivity:up to -170dB V/µPa

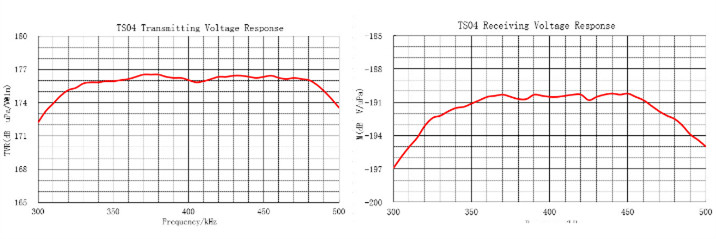

2.High Power Sandwich Broadband Transducer
Frequency:50 to 1500KHz
Transmit voltage response:up to 165dB µPa/V@1m
Receiving Sensitivity:up to -190dB V/µPa
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 5000m

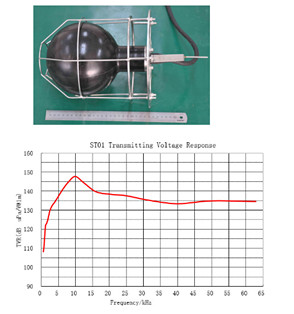

3.Omnidirectional and Hemispherical Transducer
Resonant Frequency:20 to 250KHz
Transmit voltage response:up to 145dB µPa/V@1m
Receiving Sensitivity:up to -180dB V/µPa
Bandwidth:Low Q(<2 underwater) and Broadband
Depth:up to 300m
Size:SØ170-SØ8mm
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
