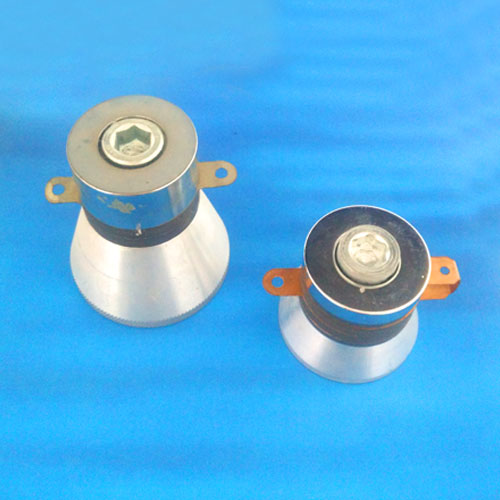

Ultrasonic cleaning transducer
Industrial production labor involved in the process of ultrasonic cleaning machine belong to the scope of industrial cleaning. Food industry, textile industry, paper industry, printing industry, petroleum processing industry, transportation industry, power industry, metal processing industry, machinery industry, automobile manufacturing, instrumentation, electronics industry, post and telecommunications, home appliances, medical equipment,Atomic energy industry and so on a large number of applications to the ultrasonic cleaning machine cleaning technology.
Brand name: | JUDE |
Model No: | JD5938D-28H |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Feature:High quality
High sensitivity
Models and Technical Data:
Type | Radial Frequency fr(KHz) | Resonance impedance Rt(%) | capacity C(pf) | Power output w |
JD4535D-28H | 28 | 15 | 4000 | 50 |
JD4535D-40H | 40 | 15 | 4000 | 50 |
JD5938D-28H | 28 | 12 | 5000 | 60 |
JD3938D-40H | 40 | 8 | 5000 | 50 |
JD6745D-25H | 25 | 15 | 6500 | 100 |
JD6345D-28H | 28 | 15 | 6500 | 100 |
JD6550D-28H | 28 | 15 | 7000 | 120 |

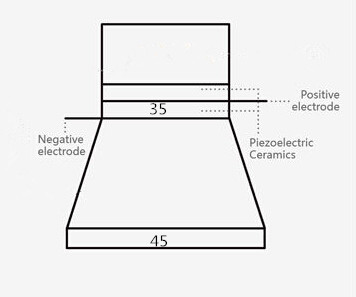

Size:
JD5938L-28H | JD | Our company code |
59 | Diameter of radiating surface | |
38 | Diameter of PZT | |
L | Two pieces PZT crystal | |
28 | Resonance frequency | |
H | trumpet-shape radiating surface |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price.
The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS ETC.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing.
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
