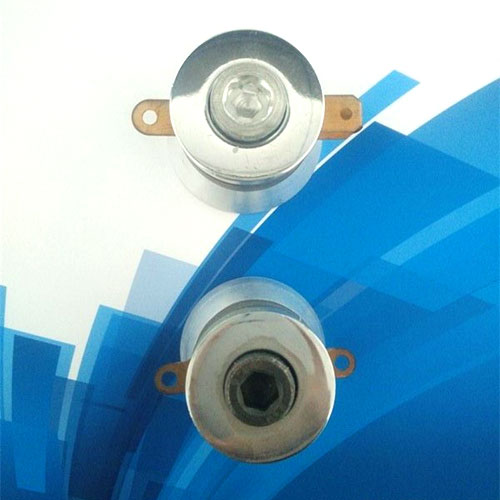

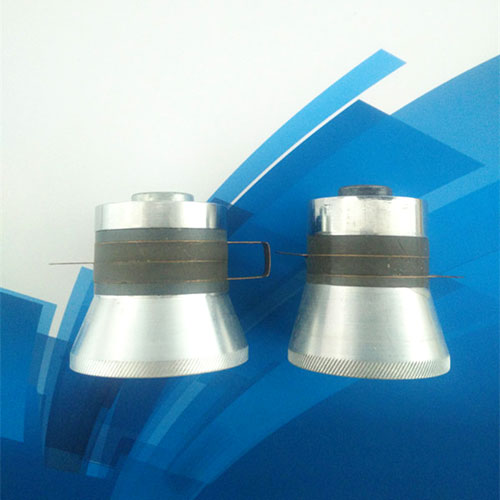

Ultrasonic cleaning transducer
Weifang Jude Electronic Company is a manufacture of piezoelectric ceramic components, our products widely used for ultrasonic flow meter, ranger, detection, sensor for wheel balancer, ultrasonic transducer for cleaning, welding and hole drilling. Our products have been exported to USA, UK, CANADA, AUSTRIAL, SOUTH AFRICA and MIDEAST etc.
If you are looking for a reliable and long term cooperation partner, please don't hesitate to contact us. We look forward to cooperate with you in future.
Brand name: | JUDE |
Model No: | JD5938D-28H |
Material: | PZT |
MOQ: | Negotiable |
Payment: | T/T, L/C |
Order Delivery Time: | Within 30 working days |
Transportation: | By air via express company, like DHL, TNT, UPS, EMS |
Ultrasonic cleaning machine including vehicles, ships, aircraft surface cleaning, only remove the relatively large dirt; precision industrial ultrasonic cleaning machine cleaning including a variety of products in the production process of cleaning, cleaning of various materials and equipment surface Washing, etc., to be able to remove small dirt particles for the characteristics of ultra-precision ultrasonic cleaning machine.Super precision ultrasonic cleaning machines includes precision industrial production processes for mechanical parts, electronic components, and optical components, ultra-precision cleaning to remove tiny dirt particles for the purpose.
Feature:High quality
High sensitivity
Models and Techanical Data:
Type | Radial Frequency fr(KHz) | Resonance impedance Rt(%) | capacity C(pf) | Power output w |
JD4535D-28H | 28 | 15 | 4000 | 50 |
JD4535D-40H | 40 | 15 | 4000 | 50 |
JD5938D-28H | 28 | 12 | 5000 | 60 |
JD3938D-40H | 40 | 8 | 5000 | 50 |
JD6745D-25H | 25 | 15 | 6500 | 100 |
JD6345D-28H | 28 | 15 | 6500 | 100 |
JD6550D-28H | 28 | 15 | 7000 | 120 |
Size：
JD5938L-28H | JD | Our company code |
59 | Diameter of radiating surface | |
38 | Diameter of PZT | |
L | Two pieces PZT crystal | |
28 | Resonance frequency | |
H | trumpet-shape radiating surface |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
Contact:
E-mail: sales@pztceramics.com
Tel/Fax: 86-0536-2221236
Website: www.pztceramics.com
