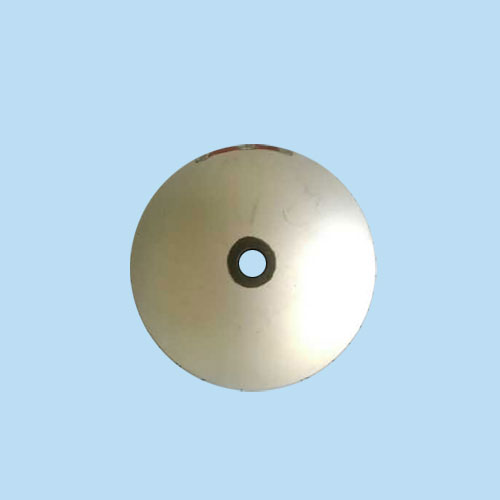

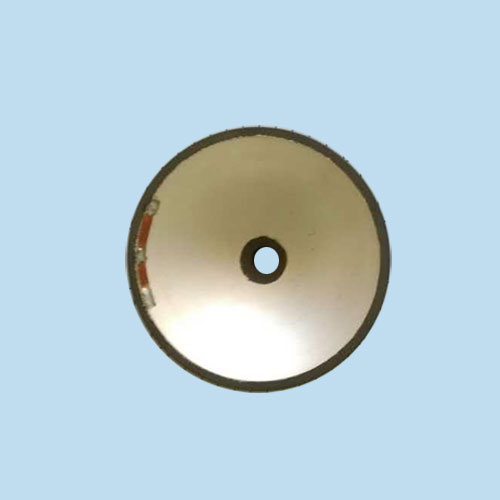

Ultrashape HIFU Ultrasonic Beauty Devices Piezoelectric Ceramics Spherical Cap
HIFU is an early stage medical technology that is in various stages of development worldwide to treat a range of disorders.HIFU uses an acoustic lens to concentrate multiple intersecting beams of ultrasound on a target. The mechanism is similar to using a magnifying glass to focus sunlight.
High Intensity Focused Ultrasound (High Intensity Focused Ultrasound (HIFU) in the treatment of the source for the Ultrasound. With solar oven focus the sun's huge energy principle in focus, the technology will in vitro low-energy ultrasonic focusing on target in the body, to produce the transient high temperature in the tumor (more than 60 ℃), cavitation, mechanical effect, such as biological effect, kill the tumor cells in the target.
Application: used to produce ultrasonic beauty instrument focused transducer
prostate cancer treatment devices
Material Feature:Transmission power
Stability
Consistency
This material is a good choice to produce an ultrasonic focused transducer product .
Models and Technical Data:
Product name | Piezoelectric ceramics element | Specification |
Φ74.5*8.5 | Material type |
6# | |||
Num | Fs(Fz) | FP(Hz) | FP-Fs(Hz) | CT(nf) | Rl(ohm) | keff | KP | d33 |
1 | 243600 | 270000 | 26400 | 7.35061 | 4.24 | 0.431 | 0.524 | 360 |
2 | 242200 | 268000 | 25800 | 7.57302 | 1.4 | 0.428 | 0.519 | 362 |
Models and Technical Data:
Product name | Piezoelectric ceramics element |
Specification |
Φ97.5*8.5 |
Material type |
6# | |||
Num | Fs(Fz) | FP(Hz) | FP-Fs(Hz) | CT(nf) | Rl(ohm) | keff | KP | d33 |
1 | 238800 | 262000 | 23200 | 13.06193 | 0.42 | 0.411 | 0.496 | 359 |
2 | 244160 | 262000 | 17840 | 12.76461 | 4.99 | 0.363 | 0.43 | 360 |
3 | 239400 | 262000 | 22600 | 12.95341 | 1.39 | 0.406 | 0.489 | 365 |
4 | 239040 | 262000 | 22960 | 12.99215 | 0.32 | 0.409 | 0.493 | 358 |
5 | 239040 | 262000 | 22960 | 13.00963 | 0.35 | 0.409 | 0.493 | 362 |
*All products can be customized according to customer requirements.
We specialize in piezoelectric ceramics and sensors for 20 years, with good quality and competitive price. The company achieves the ISO9001 Certification.
Certification:
Factory:
Shipping:
Most our products delivery to customer by air via express company, like DHL,UPS,TNT ,EMS etc.
Transport time : one week can arrival customer office after send out from us .
We have enough foam inner packing and skin packing .
