Ultra High Voltage Ceramic Capacitor CT81 / CC81 Type With High Quality

ULTRA HIGH VOLTAGE CERAMIC CAPACITOR

Features:

The rated voltage UR is more than 10KV.DC.

Samll size and high-dielectric strength voltage

Coated with flame-retardant epoxy resin.

Low dissipation factor and excellent frequency characteristics.

This kind of capacitors are mainly composed of CT81. CC81 radial lead type, HFC, ZHC mold type and HPC high voltage network capacitors.

Applications:

High -voltage DC power supplies, such as Lasers, X-ray apparatus, Air cleaners, etc.

Used in focus circuits for color display, making image focus better of whole screen.

Used in the electrostatic coating machines.

Specification:

Temperature range	Test condition
-25℃~+85℃	temperature	voltage	frequency
	20±2℃	1.0±0.2V	1 KHz or 1 MHz

• Rated voltage(Ur): 10-40KV.DC

• Nominal capacitance: 1-10000PF

• Tolerance : J: ±5%; K；±10%; M: ±20%

• Temp. Char.: Bn, B, R, D, E, F, SL, YL.

• Dissipation factor: Bn≤0.5%   R,D≤0.2%

• B,E,F≤2.5% (1KHz)

• SL,YL≤0.15% (1MHz)

• Insulation resistance: 10000M Ω min.

• Test voltage: 1.5UR

CT81 / CC81 type

Specifications:

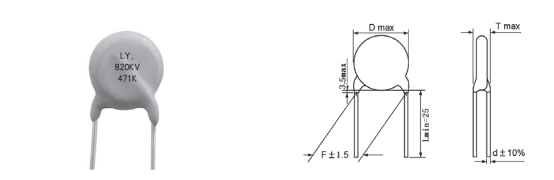

Nominal capacitance, rated voltage and dimension
Ur(DC)	Nominal capacitance(pF)						Dimension
	Bn、 B	R、D	E	F	SL	YL	Dmax (mm)	Tmax (mm)
10kV | 15kV	100-220	100-220	220-560	560-820	3-30	22-68	8.0	10.0
	270-330	270-300	680-820	1000-1200	33-50	82	10.0	10.0
	390-560	390-500	1000-1500	1500-2200	56-82	100-120	12.5	10.0
	680-820	560	1800-2200	2700-3300	100-120	150	14.0	10.0
	1000	750-680	2500	3900-4700	120	180-220	16.0	10.0
	1200	820-1000	2700	5000-5600	150	270-300	18.0	10.0
	1500-1800	1200	3000-4700	6800-100000	180-270	330-470	22.0	10.0
20kV | 30kV	100-180	100-150	220-470	470-680	1.0-20	10-47	8.0	13.0
	200-270	180-200	500-680	750-820	22-33	50-56	10.0	13.0
	330-470	220-270	750-1000	1000-1200	47-50	68-100	12.5	13.0
	500	300-470	1200	1500-2200	56	120-150	14.0	13.0
	560-680	500-560	1500-1800	2700	82-100	180-200	16.0	13.0
	750-1000	680-750	2000-2200	3300-4000	120	220	18.0	13.0
	1200	820-1000	2500-3300	4700-5600	150-220	270-330	22.0	13.0
